HYDAC mounting components are used to mount all types of hydro-pneumatic accumulators safely and simply, regardless of the mounting position. Our wide range includes suitable mounting components for every type of static hydro-pneumatic accumulator.

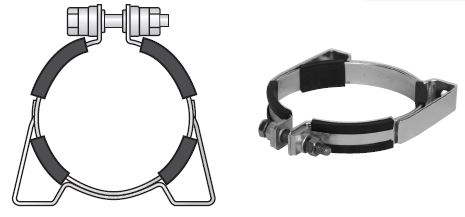

HS Series 185 mm Mounting Width Regular Duty Clamp
Unit of Measure

Specifications

Type

Regular Duty Clamp

Model Code Description

HS 167

Series

HS

Weight

0.9 kg2.0 lb

BUn

EA

Division

ACCUMULATORS

Product Group Family

ACCESSORIES-ACCUMULATORS

Product

ACCUMULATORS ACCESSORIES

Dimensions

Dimension A

185 mm7.28 in

Dimension B

153 mm6.02 in

Dimension C (Ref)

211 mm8.31 in

Dimension D

167 mm6.57 in

Dimension D (Range)

164 to 170 mm6.46 to 6.69 in

Dimension H

92.5 mm3.64 in

Diameter L

9 mm0.35 in

Dimension Z

30 mm1.18 in

Function

N/A Mounting components are used primarily for the following:

  • to fix the accumulator into its position
  • to carry the weight of the accumulator
  • to counteract the forces exerted by the hydraulic lines

Construction

N/A They are constructed out of zinc-plated steel with a stainless steel strap (depending on style), utilizing a rubber insert to absorb vibration.
The HyRac and regular duty have a one piece construction with center adjustment.
All mounting components can be easily bolted to your system.
