• Zinc-Plated Internals
  • Threaded Connection
Unit of Measure

Specifications

Model Code Description

BF P 4 G 10 W 1.0

Type of Connection

BSPP

Cap Material

Epoxy Coated Steel

Gauge Option

Without Indicator

Type

Breather

Filter Element Material

Phenolic Resin Impregnated Paper

Size

4

Filtration Rating

10 µm

Maximum Flow Rate at 0.04 bar

12 scfm90 gpm

Efficiency

100 %

Maximum Flow Rate at 0.04 bar

90 gpm

BUn

EA

Configuration

Breather only

Division

ACCESSORIES

Product Group Family

BREATHERS-PARTICULATE

Product

BREATHERS

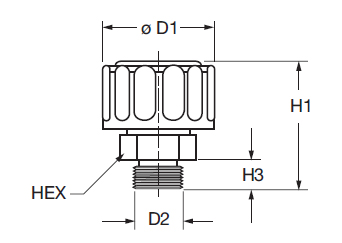

Dimensions

Dimension D2

G 1/4

Diameter D1

1.73 in44 mm

Dimension H1

2.44 in62 mm

Dimension H3

0.53 in13.5 mm

Dimension Hex

11/16 in17 mm
