HYDAC mounting components are used to mount all types of hydro-pneumatic accumulators safely and simply, regardless of the mounting position. Our wide range includes suitable mounting components for every type of static hydro-pneumatic accumulator.

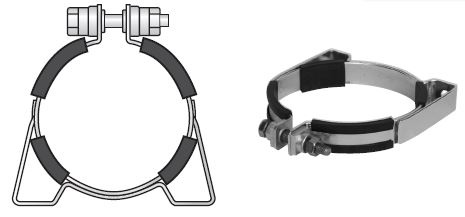

HS Series 185 mm Mounting Width Regular Duty Clamp
Unit of Measure

Specifications

Type

 N/A Regular Duty Clamp

Model Code Description

 N/A HS 167

Series

 N/A HS

Weight

 N/A 0.9 kg2 lb

BUn

 N/A EA

Division

 N/A ACCUMULATORS

Product Group Family

 N/A ACCESSORIES-ACCUMULATORS

Product

 N/A ACCUMULATORS ACCESSORIES

Dimensions

Dimension A

 N/A 185 mm7.28 in

Dimension B

 N/A 153 mm6.02 in

Dimension C (Ref)

 N/A 211 mm8.31 in

Dimension D

 N/A 167 mm6.57 in

Dimension D (Range)

 N/A 164 to 170 mm6.46 to 6.69 in

Dimension H

 N/A 92.5 mm3.64 in

Diameter L

 N/A 9 mm0.35 in

Dimension Z

 N/A 30 mm1.18 in

Function

N/A Mounting components are used primarily for the following:

  • to fix the accumulator into its position
  • to carry the weight of the accumulator
  • to counteract the forces exerted by the hydraulic lines

Construction

N/A They are constructed out of zinc-plated steel with a stainless steel strap (depending on style), utilizing a rubber insert to absorb vibration.
The HyRac and regular duty have a one piece construction with center adjustment.
All mounting components can be easily bolted to your system.
