HYDAC mounting components are used to mount all types of hydro-pneumatic accumulators safely and simply, regardless of the mounting position. Our wide range includes suitable mounting components for every type of static hydro-pneumatic accumulator.

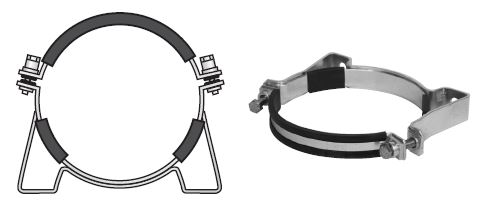

HSS Series 270 mm Mounting Width Heavy Duty Clamp
Unit of Measure

Specifications

Type

 N/A Heavy Duty Clamp

Model Code Description

 N/A HSS 222/229

Series

 N/A HSS

Weight

 N/A 1.7 kg3.8 lb

BUn

 N/A EA

Division

 N/A ACCUMULATORS

Product Group Family

 N/A ACCESSORIES-ACCUMULATORS

Product

 N/A ACCUMULATORS ACCESSORIES

Dimensions

Dimension A

 N/A 270 mm10.63 in

Dimension B

 N/A 216 mm8.50 in

Dimension C (Ref)

 N/A 244 mm9.61 in

Dimension D

 N/A 226 mm8.9 in

Dimension D (Range)

 N/A 220 to 231 mm8.66 to 9.10 in

Dimension E

 N/A 40 mm1.6 in

Dimension H

 N/A 123 mm4.84 in

Dimension K

 N/A 295 mm11.61 in

Diameter L

 N/A 15 mm0.59 in

Dimension Z

 N/A 40 mm1.57 in

Function

N/A Mounting components are used primarily for the following:

  • to fix the accumulator into its position
  • to carry the weight of the accumulator
  • to counteract the forces exerted by the hydraulic lines

Construction

N/A They are constructed out of zinc-plated steel with a stainless steel strap (depending on style), utilizing a rubber insert to absorb vibration.
The heavy duty clamps have a two piece construction. This allows for easy installation and removal while improving the strength to weight ratio.
All mounting components can be easily bolted to your system.
