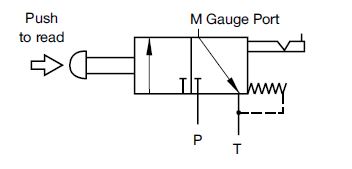

  • Gauge life is extended by using the MA 1 when reading pressure. When not reading pressure, the gauge is vented to tank to protect the gauge against pressure from the system.
  • There are two ways to operate the MA 1:
    • Push to read (spring return)
    • Push and rotate clockwise to lock in for continuous pressure reading
Unit of Measure

Specifications

Type

 N/A Gauge Isolator

Model Code Description

 N/A MA 1 A 1.X/5 V

Style

 N/A Single Station

Mounting

 N/A Panel Installation

Panel Thickness [Max]

 N/A 0.39 in

Connection Type

 N/A NPT

Connection Size (Port P)

 N/A 1/4 in. NPT

Connection Size (Port T)

 N/A 1/4 in. NPT

Connection Size (Port M)

 N/A 1/4 in. NPT

Weight

 N/A 0.40 kg0.88 lb

Mounting Position

 N/A Horizontal or Vertical

Operating Fluid

 N/A Mineral Oil

T-Port Max

 N/A 350 bar5075 psi

Tank Connection Pressure [Max]

 N/A 10 bar145 psi

Minimum Temperature

 N/A -20 ºC-4 ºF

Maximum Temperature

 N/A 80 ºC176 ºF

Seal Material

 N/A Fluoroelastomer (Standard)

Design

 N/A Push/Rotating Control Knob

Type Number

 N/A 1

BUn

 N/A EA

Division

 N/A ACCESSORIES

Product Group Family

 N/A GAUGE ISOLATORS

Product

 N/A ACCESSORIES / MISC

Note

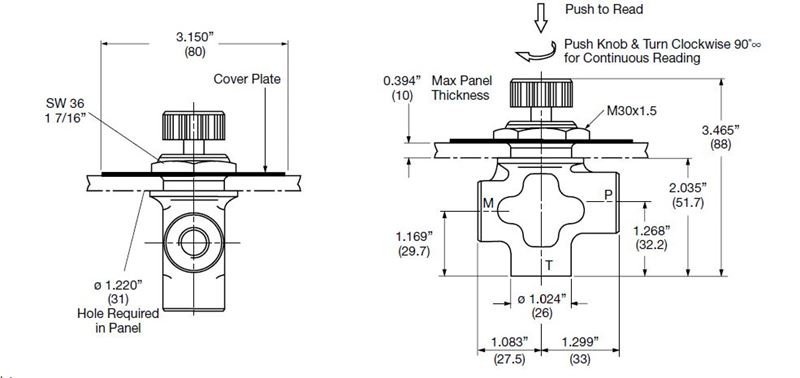

N/A Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
