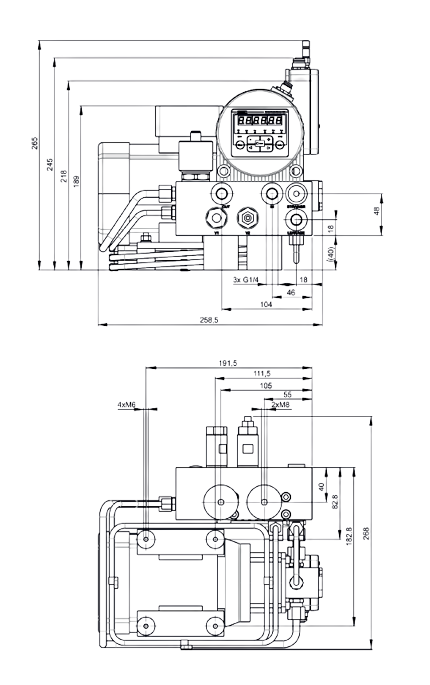

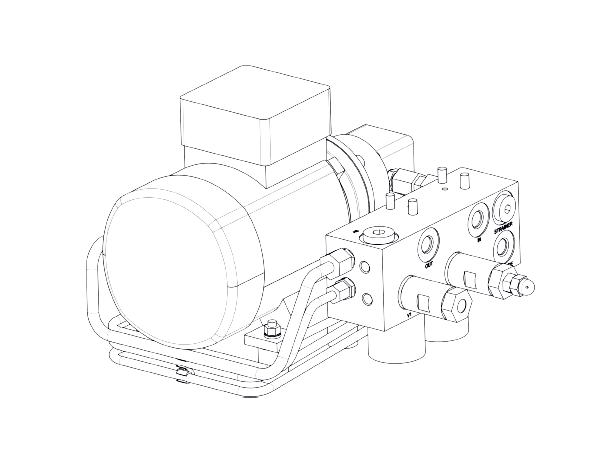

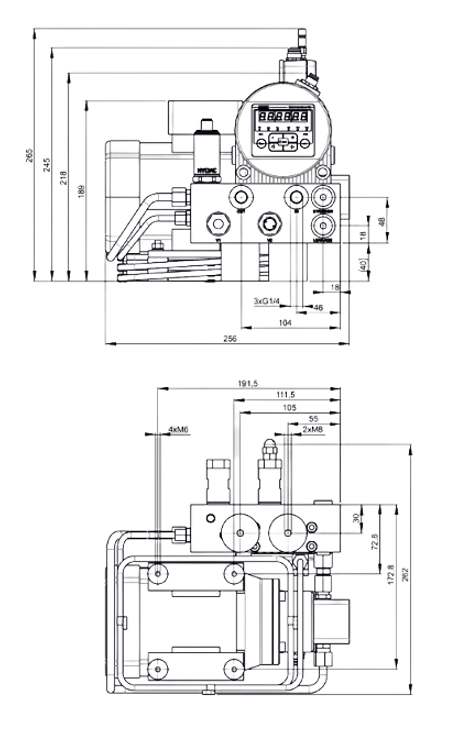

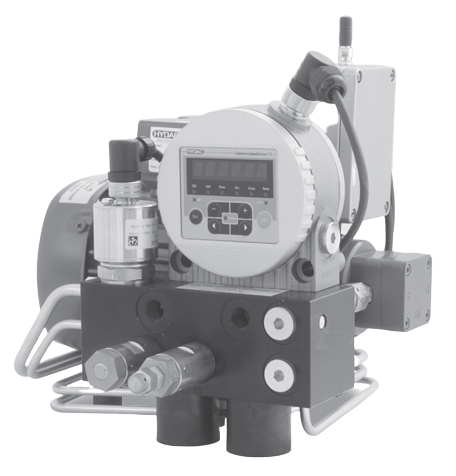

This unit is a compact contamination sensor module which provides online condition monitoring for hydraulic and lubrication oil systems. The module is equipped with a CS1000 contamination sensor and AS1000 moisture sensor, along with a CSI-C-11 condition sensor interface. Pump flow rate approx. 180 ml/min.
Unit of Measure

Specifications

Series

 N/A CSM-E = For CS1000 with Flange Connection

Type

 N/A Contamination Sensor Module - Economy

Relative Humidity [Max] - Non-Condensing

 N/A 90 %

Inline installation

 N/A Set up for AS1000 / AS3000

Version

 N/A Standard

Media

 N/A Mineral Oil

Hydraulic Version

 N/A Gear Pump, Inlet Pressure-Stability with Drain Line

Sensors

 N/A None

Operating Pressure [Max] Pin (Inlet)

 N/A -0.4 to 120 bar

Operating Pressure [Max] Pout (Outlet)

 N/A 5 bar

Operating Pressure [Max] Leakage Oil (Leak)

 N/A 0.5 bar

Hydraulic Connections Pin (Inlet) - According to ISO 228-1

 N/A G 1/4

Hydraulic Connections Pout (Outlet) - According to ISO 228-1

 N/A G 1/4

Hydraulic Connections Leakage Oil (Leak) - According to ISO 228-1

 N/A G 1/4

Permissible Viscosity Range for Operation

 N/A 10 to 3000 mm²/s

Permissible Viscosity Range for Measurement

 N/A 10 to 1000 mm²/s

Flow Rate for 1500 rpm

 N/A ~ 180 mL/min

Permitted Fluids

 N/A Hydraulic and Lubrication Fluids Based on Mineral Oil

Pump Type

 N/A Gear Pump

Maximal Suction Height

 N/A 0.5 m

Fluid Temperature

 N/A 0 to 85 ºC

Power Consumption at 50 Hz

 N/A 180 W

Power Consumption at 60 Hz

 N/A 210 W

Protection Class

 N/A IP 55

Empty Weight

 N/A ~ 12 kg

Note for Empty Weight

 N/A Including Sensors

Storage Temperature Range

 N/A -40 to 80 ºC

Ambient Temperature Range

 N/A 0 to 40 ºC

Additional Information

Additional Information

 N/A The module is supplied with 1/4 inch suction and return hoses, seven (7) feet long with female JIC connections. Power supply 120 VAC/1 ph/6 0Hz (with 12 feet cord). The module is small and compact enough to be easily position by hand for use during the online monitoring period.

The Contamination Sensor Module CSM Economy 1000 is a compact and cost-effective online Condition Monitoring module for conditioning the flow rate of hydraulic and lubricating fluids and diesel fuels (CSM-E 1xxx-4). It is used together with the fluid sensors (available separately) to measure solid particle contamination, water saturation and oil ageing.

The CSM Economy consists of a motor, pump, air releasing path and inline sensor installation and can also be combined with the fluid sensors of the series CS1000, AS1000 or AS3000 and HLB1400. Furthermore, the optionally available data storage and network communication module CSI C-11 makes it possible to upgrade the CSM-E to form a compact condition monitoring solution for fluids.

Fields of Application

Fields of Application

 N/A
  • Monitoring lubrication systems in the paper, steel and energy industries
  • Monitoring diesel in fuel reservoirs
  • Component cleanliness monitoring in test benches
  • Monitoring of oil cleanliness in tanks and pressure lines
  • When no pressure is present at the measurement point
  • As a tool for preventive and proactive maintenance strategies

Advantages

Advantages

 N/A
  • Modular, cost-effective system for flexible combination with various fluid sensors
    • Contamination Sensor CS1000 for measuring the solid particle contamination
    • AquaSensor AS1000 or AS3000 for measuring the water saturation
    • HydacLab HLB1400 for determining the fluid condition
  • Also available for pumps with high inlet pressures

Note

Note

 N/A The information in this brochure relates to the operating conditions and applications described.

For applications and operating conditions not described, please contact the relevant technical department.

Subject to technical modifications.
