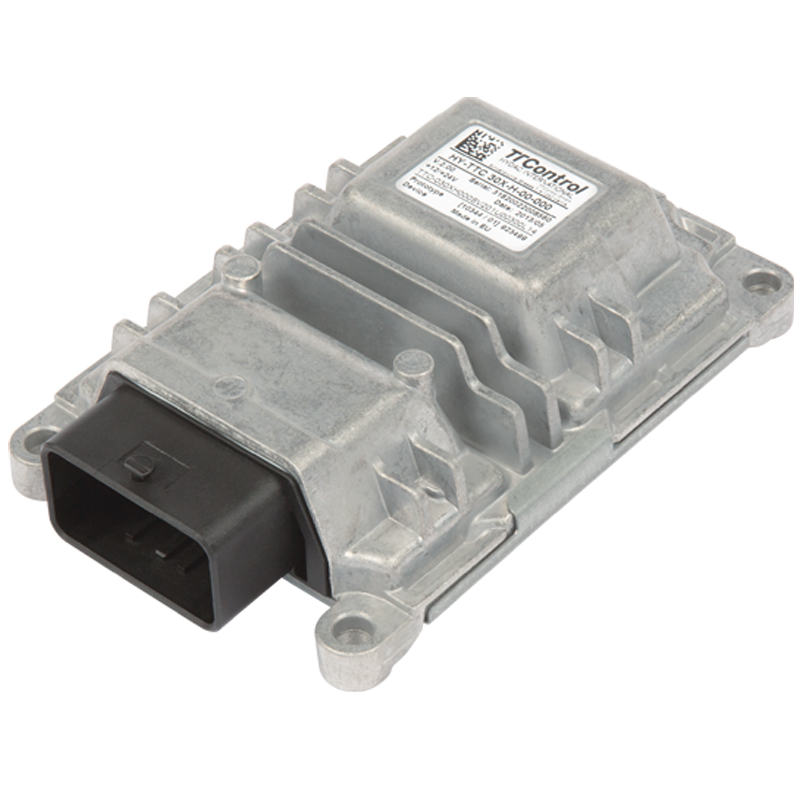

The HY-TTC 30XH is an I/O slave module which is designed for cost sensitive applications demanding a high number of PWM outputs. The HY-TTC 30XH is a member of the HY-TTC 30X family, which consists of different I/O slave modules that are controlled using CANopen® protocol. The HY-TTC 30X family is part of a complete and compatible product range for the off-highway industry. The modules are protected by compact automotive style housings which are highly suited for rough operating conditions. They provide a wide range of flexible configurable I/Os and allow local current control using PWM outputs.
Unit of Measure

Specifications

Model Code Description

 N/A HY-TTC 30X-H-F11-00-000

Weight

 N/A 0.73 lb

Operating Temperature [Min]

 N/A -40 ºC

Operating Temperature [Max]

 N/A 85 ºC

Output Type

 N/A
  • 6 x PWM OUT or digital OUT, up to 3 A, high side switch with current-measurement, overload and open load detection alternative use digital timer IN (10 Hz - 10 kHz) or analog IN 0 - 32 V both with integrated Pull-Up
  • 2 x PWM OUT or digital OUT, up to 3 A, high side switch with overload detection, open load detection and support for high inrush current loads alternative use digital timer IN (10 Hz - 10 kHz) or analog IN 0 - 32 V both with integrated Pull-Up
  • 2 x digital OUT, up to 3 A, low side switch with overload and open load detection alternative use analog IN, 0 - 32 V with integrated Pull-Up
  • 6 x PVG OUT 15 % - 85 % BAT+ with PVG valve alternative use voltage OUT 0 V - 75 % BAT+ with 10 kOhm low side load or analog IN 0 - 32 V

Input Type

 N/A
  • 4 x digital timer IN (0.1 Hz - 10 kHz)alternative use analog IN, 0 to 32 V 1x rotary encoder configurable Pull-Up/Down in digital IN mode
  • 2 x analog IN, configurable in software 0 - 5 V / 10 V IN, 0 - 25 mA IN, 0 - 65 kOhm IN, up to 25 mA LED control OUT
  • 6 x analog IN, configurable in software 0 - 5 V/10 V IN, 0 - 25 mA IN, up to 25 mA LED control OUT
  • 2 x analog IN 0 - 32 Vconfigurable Pull-Up/Down in digital IN mode

Other

 N/A
  • 1 x sensor supply 5 V, 100 mA
  • Internal monitoring of board temperature, sensor supply, K15 input and battery voltage

Length

 N/A 147 mm

Depth

 N/A 38 mm

Width

 N/A 92 mm

Minimum Connector Release Clearance Length

 N/A 208 mm

Minimum Connector Release Clearance Width

 N/A 92 mm

Minimum Connector Release Clearance Height

 N/A 38 mm

Connector

 N/A 48 pins

Operating Altitude

 N/A 0 to 4000 m

Supply Voltage

 N/A 8 to 32 V

Maximum Peak Voltage

 N/A 40 V

Standby Current

 N/A ≤ 1 mA

Idle Current

 N/A ≤ 120 mA

Maximum Current

 N/A 24 A

Functional Safety

 N/A Designed for ISO 13849 PL b

CE - Mark

 N/A 2014/30/EU

E - Mark

 N/A ECE-R10 Rev.4

Electromagnetic Compatibility (EMC)

 N/A EN 13309, ISO 14982, CISPR 25, EN 61000-6-2/-4

Electrostatic Discharge (ESD)

 N/A ISO 10605

Electrical

 N/A ISO 16750-2, ISO 7637-2,-3, Limited to 40 V by External, Load Dump Protection

Ingress Protection (IP) Class

 N/A EN 60529 IP67, ISO 20653 IP6k9k

Climatic

 N/A ISO 16750-4

Mechanical

 N/A ISO 16750-3

Equipment Options

 N/A Standard

Division

 N/A ELECTRONICS

Product Group Family

 N/A INPUT/OUTPUT EXPANSION MODULES

Product

 N/A MOBILE CONTROLLERS / IO MODULES

CPU Core

CPU Core

 N/A
  • Infineon XC22xx CPU 80 MHz
  • 768 kByte int. Flash, 82 kByte int. RAM, 8 kByte EEPROM

Interface

Interface

 N/A
  • 1 x CAN, 125 kbit/s up to 1 Mbit/s
  • 1 x CAN bus termination configurable via connector pins
  • 2 x node ID pins for optional configuration of CANopen® ID

Software

Software

 N/A CANopen® slave software preinstalled

Note

N/A All I/Os and interfaces are protected against short circuit to GND and BAT+, and can be configured by software. All analog inputs use 10 bit resolution. All analog voltage inputs can be used as digital inputs with configurable switching levels and hysteresis. Dedicated power supply pins for high side outputs. Details to the standards can be found in the User Manual.
