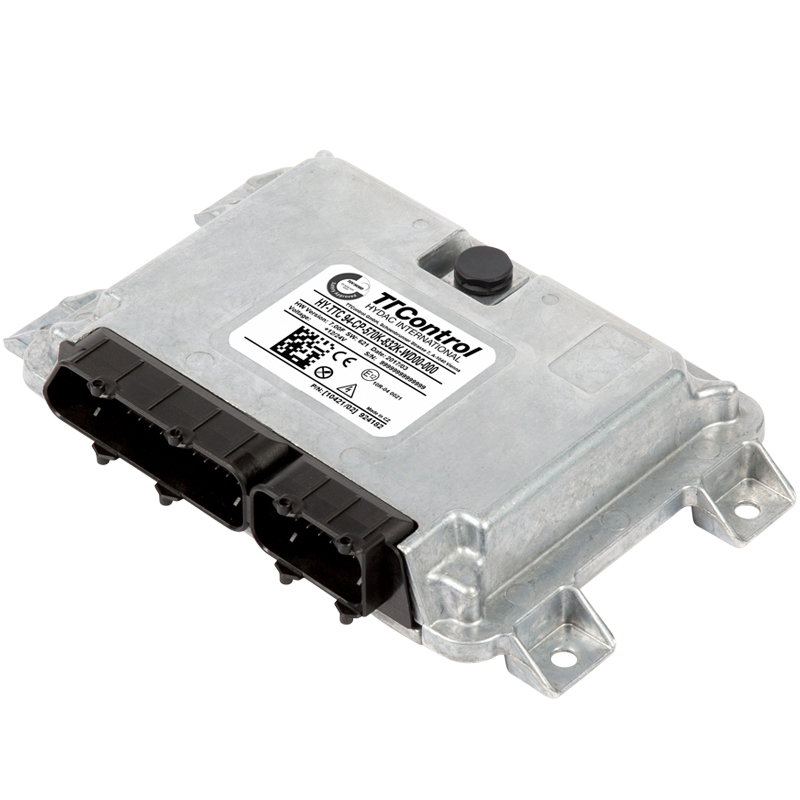

HY-TTC 48X is an intelligent I/O module that is controlled using CANopen®. It is compliant to CANopen® standard certified by CiA. It is part of a complete and compatible product family for the off-highway industry. The HY-TTC 48X is protected by a compact, automotive-style housing and is highly suited for rough operating conditions. It allows local current control on its PWM outputs.
Unit of Measure

Specifications

Model Code Description

 N/A HY-TTC 48X-F11-00-000

Weight

 N/A 1.43 lb

Operating Temperature [Min]

 N/A -40 ºC

Operating Temperature [Max]

 N/A 85 ºC

Output Type

 N/A
  • 8x digital OUT 2A high-side, PWM, configurable as timer inputs
  • 8x digital OUT 4A high-side, configurable as analog inputs

Input Type

 N/A
  • 8 x analog IN 0 to 5 V or 4 to 20 mA/10 bit, configured by software alternative use as resistive measurements
  • 8 x analog IN 0 to 32 V/10 bit, range configurable by SW
  • 4 x current feedback, configurable as digital outputs/ low side 2 A
  • 4 x digital IN (4 timer 10 Hz to 10 kHz)
  • 8 x digital IN

Other

 N/A
  • Internal: monitoring of board temperature, sensor supply and battery
  • 1 x sensor supply 8.5 V/10.0 V/14.5 V configurable
  • 2 x sensor supply 5 V

Length

 N/A 147.6 mm

Height

 N/A 39.8 mm

Width

 N/A 180.3 mm

Minimum Connector Release Clearance Length

 N/A 197.7 mm

Minimum Connector Release Clearance Width

 N/A 202.8 mm

Minimum Connector Release Clearance Height

 N/A 39.8 mm

Connector

 N/A 80 Pins

Operating Altitude

 N/A 0 to 4000 m

Supply Voltage

 N/A 8 to 32 V

Maximum Peak Voltage

 N/A 45 V

Maximum Standby Current

 N/A 0.5 mA

Maximum Idle Current at 9 V

 N/A 0.15 A

Maximum Current

 N/A 25 A

CE - Mark

 N/A 2014/30/EU

E - Mark

 N/A ECE-R10 Rev.4

Electromagnetic Compatibility (EMC)

 N/A ISO13766, Up to 100 V/m, 20 MHz to 1 GHz

Electrostatic Discharge (ESD)

 N/A IEC61000-4-2

Load Dump

 N/A ISO7637-2, 173 V, 2 Ohm

Ingress Protection (IP) Class

 N/A EN 60529 IP 65, IP67, DIN 40050 IP 6K9K

Climatic

 N/A EN 60068-2-1, -14Nb, -2, -78, -30

Vibration, Shock, Bump

 N/A IEC 60068-2-29, -64, -27, -32

Equipment Options

 N/A Standard

Division

 N/A ELECTRONICS

Product Group Family

 N/A INPUT/OUTPUT EXPANSION MODULES

Product

 N/A MOBILE CONTROLLERS / IO MODULES

CPU Core

CPU Core

 N/A
  • 16/32-bit Infineon XC2287 microcontroller 80 MHz
  • 768 kB int. Flash, 82 kB int. RAM, 512 kB ext. RAM

Interface

Interface

 N/A 1x CAN, 125 kbit/s up to 1 Mbit/s

Software

Software

 N/A CANopen® slave software preinstalled

Note

N/A All I/Os and interfaces mentioned are protected against short circuit to GND and BAT+.
