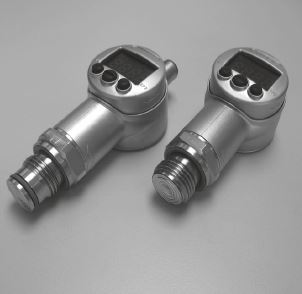

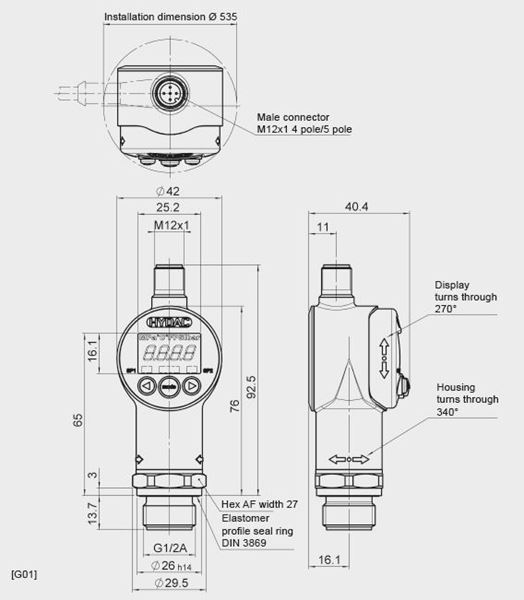

The electronic pressure switch EDS 3400 with a flush membrane was designed specifically for applications in which a standard pressure port could become blocked, clogged or frozen by the particular medium used.

Further applications include processes where the medium changes frequently and any residues could cause mixing or contamination of the media.

Like the standard model, the EDS 3400 with flush membrane has a measurement cell with a thin-film strain gauge on a stainless steel membrane for relative pressure measurement in the high pressure range.

The pressure port is achieved with a fully sealed stainless steel front membrane filled internally with a pressure transfer fluid. The process pressure is transmitted hydrostatically to the measurement cell via the pressure transfer fluid.

Depending on the type, the instrument can have up to two switching outputs and one switchable analog output (4 to 20 mA or 0 to 10 V).
Unit of Measure

Specifications

Type

 N/A Electronic Pressure Switch

Model Code Description

 N/A EDS 34Z6-1-0040-G01-000

Direct Current (DC) Supply Voltage When Applied According to UL Specifications (Without Analog Output)

 N/A 18 to 35 V

Note for Direct Current (DC) Supply Voltage When Applied According to UL Specifications

 N/A Limited energy - According to 9.3 UL 61010; Class 2; UL 1310/1585; LPS UL 60950

Residual Ripple of Supply Voltage

 N/A ≤ 5 %

Maximum Total Current Consumption

 N/A 2.455 A

Maximum Current Consumption (With Inactive Switching Output)

 N/A 35 mA

Maximum Current Consumption (With Inactive Switching Output and Analog Output)

 N/A 55 mA

Display

 N/A 4-Digit, LED, 7 Segment, Red, Height of Digits 7 mm

Weight

 N/A ~150 g

Switching Outputs

 N/A 1 Switching Output

Switching Function

 N/A Adjustable N/O or N/C

Electrical Connection

 N/A Male M12x1, 4 Pole

Mechanical Process Connection

 N/A Flush Membrane

BUn

 N/A EA

Input Data

Input Measuring Pressure Range

 N/A 40 bar

Input Overload Pressure

 N/A 80 bar

Burst Pressure

 N/A 200 bar

Input Mechanical Connection Type

 N/A G1/4 A ISO 1179-2

Input Mechanical Connection Size

 N/A G1/2 A, male

Recommended Tightening Torque

 N/A 20 N·m

Torque Value

 N/A 20 N·m15 lb·ft

Material of Connection

 N/A Stainless Steel

Seal Material

 N/A Fluorocarbon Elastomer (FKM)

Pressure Transfer Fluid

 N/A Silicone-Free Oil

Sensor Cell

 N/A Fluorocarbon Elastomer (FKM)

O-Ring Material

 N/A Fluorocarbon Elastomer (FKM)

Output Data

Switch Output Type

 N/A 1 PNP Transistor Switching Output

Maximum Switching Current Per Switch Output

 N/A 1.2 A

Switching Cycles

 N/A > 100 Million

Maximum Output Permitted Load Resistance

 N/A 500 O

Minimum Output Permitted Load Resistance

 N/A 1 kO

Output Typical Accuracy According to DIN 16086, Terminal Based (Full Scale)

 N/A ≤ ± 0.5 %

Output Maximum Accuracy According to DIN 16086, Terminal Based (Full Scale)

 N/A ≤ ± 1 %

Output Typical Temperature Compensation Zero Point (Full Scale)

 N/A ≤ ± 0.015 %/°C

Output Maximum Temperature Compensation Zero Point (Full Scale)

 N/A ≤ ± 0.025 %/°C

Output Typical Temperature Compensation Span (Full Scale)

 N/A ≤ ± 0.015 %/°C

Output Maximum Temperature Compensation Span (Full Scale)

 N/A ≤ ± 0.025 %/°C

Maximum Output Repeatability (Full Scale)

 N/A ≤ ± 0.25 %

Output Reaction Time

 N/A < 10 ms

Output Long-Term Drift Per Year (Full Scale)

 N/A ≤ ± 0.3 %

Environmental Conditions

Compensated Temperature Range

 N/A 14 to 158 ºF-10 to 70 ºC

Operating Temperature Range

 N/A -20 to 80 ºC-13 to 176 ºF

Operating Temperature Range (for UL Spec)

 N/A -25 to 60 ºC

Storage Temperature Range

 N/A -40 to 80 ºC-40 to 176 ºF

Fluid Temperature Range

 N/A -25 to 80 ºC-13 to 176 ºF

CE Mark

 N/A EN 61000-6-1/2/3/4

CUL®US Mark

 N/A Certificate No.: E318391

Note for CUL®US Mark

 N/A Environmental conditions according to 1.4.2 UL 61010-1; C22.2 No. 61010-1

Vibration Resistance According to DIN EN 60068-2-6 at 10 to 500 Hz

 N/A ≤ 10 g

Shock Resistance According to DIN EN 60068-2-6 at 10 to 500 Hz Per 6 ms

 N/A ≤ 50 g

Protection Class According to DIN IEC 60529

 N/A IP 67

Note for Protection Class According to DIN IEC 60529

 N/A With mounted mating connector in corresponding protection class

Setting Ranges for the Switch

Switch Point

 N/A 0.6 to 40 bar

Hysteresis (Switch Point)

 N/A 0.2 to 39.6 bar

Increment (Switch Point)

 N/A 0.1 bar

Note for Increment (Switch Point, Window Function)

 N/A All ranges given in the table can be adjusted by the increments shown.

Lower Switch Value (Window Function)

 N/A 0.6 to 39.2 bar

Upper Switch Value (Window Function)

 N/A 0.9 to 39.6 bar

Increment (Window Function)

 N/A 0.1 bar

Pin Connections

Pin Connection 1

 N/A +UB

Pin Connection 2

 N/A No Connection

Pin Connection 3

 N/A 0 Voltage

Pin Connection 4

 N/A SP1

Special Features

N/A

  • Switching mode of the switching outputs adjustable (switch point function or window function)
  • Switching direction of the switching outputs adjustable (N/C or N/O function)
  • Switch-on and switch-off delay adjustable from 0.00 to 99.99 seconds
  • Analog output signal selectable 4 to 20 mA or 0 to 10 V
  • Pressure can be displayed in measurement units bar, psi, MPa. The scaling can also be adapted to indicate force, weight, etc..
  • Choice of display (actual pressure, peak value, switch point 1, switch point 2, display off)
  • Display filter for smoothing the display value during pressure pulsations

Setting Options

N/A All settings available on the EDS 3400 are grouped in 2 easy-to-navigate menus.

In order to prevent unauthorized adjustment of the device, a programming lock can be set.

Accessories

N/A Appropriate accessories, such as electrical connectors, mechanical adapters, splash guards, clamps for wall-mounting etc. can be found in the Accessories brochure.

Note

N/A Overvoltage, override protection and short circuit protection are provided.

Subject to technical modifications.
