Industry Standards/Certifications |
N/A CE Mark: EN 61000-6-1 / 2 / 3 / 4 |
Connection Type |
N/A G1/4 A ISO 1179-2, Male |
Seal Material |
N/A FKM |
Weight |
N/A 0.331 kg |
Burst Pressure |
N/A 48 bar |
Switch Type |
N/A 1 PNP Transistor Output |
Switching Function |
N/A Normally Open |
Electrical Connection |
N/A M18 Series 714 Binder Series, 4 Pole |
Power Supply |
N/A 12 to 30 VDC |
Model Code Description |
N/A EDS 410-0016-0-051-F1(1,0/0,8bar) |
Pin Connection 1 |
N/A +Ub |
Pin Connection 3 |
N/A 0 V |
Pin Connection 4 |
N/A SP1 |
Recommended Tightening Torque |
N/A 20 N·m |
Output Typical Accuracy According to DIN 16086, Terminal Based (Full Scale) |
N/A ≤ ± 0.5 % |
Output Maximum Accuracy According to DIN 16086, Terminal Based (Full Scale) |
N/A ≤ ± 1 % |
Maximum Output Repeatability (Full Scale) |
N/A ≤ ± 0.1 % |
Switching Cycles |
N/A >10 Million |
Vibration Resistance According to DIN EN 60068-2-6 at 10 to 500 Hz |
N/A ≤ 20 g |
Shock Resistance According to DIN EN 60068-2-6 at 10 to 500 Hz Per 6 ms |
N/A ≤ 100 g |
Residual Ripple of Supply Voltage |
N/A ≤ 5 % |
Output Long-Term Drift Per Year (Full Scale) |
N/A ≤ ± 0.3 % |
Switch Point |
N/A 1.0 bar |
Hysteresis (Switch Point) |
N/A 0.2 bar |
Overload Pressure |
N/A 32 bar |
Switching Current |
N/A 1.2 A |
Operating Temperature [Min] |
N/A -30 ºC |
Operating Temperature [Max] |
N/A 85 ºC |
Operating Pressure [Min] |
N/A 0 bar |
Operating Pressure [Max] |
N/A 16 bar |
Degree of Protection |
N/A IP 65 |
Compensated Temperature Range |
N/A -25 to 85 ºC |
Storage Temperature Range |
N/A -40 to 100 ºC |
Fluid Temperature Range |
N/A -40 to 100 ºC |
Division |
N/A ELECTRONICS |
Product Group Family |
N/A PRESSURE SWITCHES |
Product |
N/A PRESSURE SWITCHES |
Additional Information |

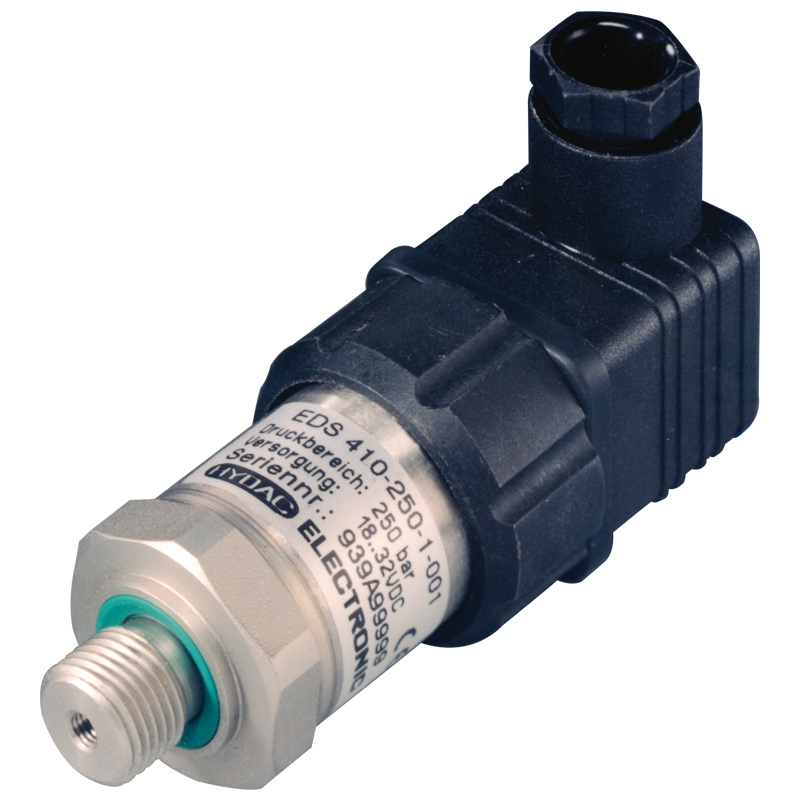

N/A As with the EDS 4000 standard model, the EDS 410 has a ceramic measurement cell with thick-film strain gauge for measuring relative pressure in the low pressure range, and a stainless steel measurement cell with thin-film strain gauge for measuring in the high pressure range. Various pressure ranges between -14.5 .. 75 psi and 0 .. 9000 psi as well as bar and different electrical and mechanical connection types are available. |
