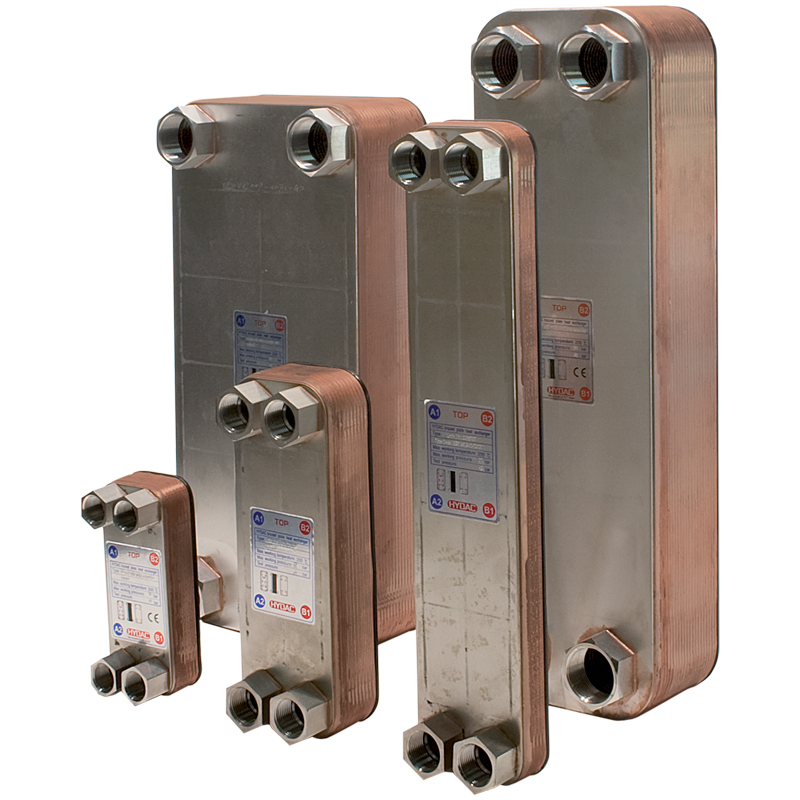

Heat exchangers are used to exchange heat between two fluids. Plate heat exchangers are high performance components and provide a high level of efficiency combined with compact dimensions and low weight. Their efficiency reduces the amount of cooling water required for heat transfer which results in low operating costs.
Part Number |
Model Code Description |
Port Size |
Number of Plates (N) |
Depth |
Width |
Core Products |
|---|---|---|---|---|---|---|
| 2582248 | Model Code Description N/A HEX 722-100 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 100 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582249 | Model Code Description N/A HEX 722-120 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 120 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582250 | Model Code Description N/A HEX 722-150 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 150 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2956307 | Model Code Description N/A HEX 722-180 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 180 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582243 | Model Code Description N/A HEX 722-30 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 30 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582244 | Model Code Description N/A HEX 722-40 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 40 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582245 | Model Code Description N/A HEX 722-50 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 50 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582246 | Model Code Description N/A HEX 722-60 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 60 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582247 | Model Code Description N/A HEX 722-80 NPT 1.5" | Port Size N/A 1-1/2 in. | Number of Plates (N) N/A 80 | Depth N/A 7.52 in191 mm | Width N/A 24.33 in618 mm | Core Products |
| 2582225 | Model Code Description N/A HEX 610-10 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 10 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582232 | Model Code Description N/A HEX 610-100 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 100 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582226 | Model Code Description N/A HEX 610-20 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 20 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582227 | Model Code Description N/A HEX 610-30 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 30 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582228 | Model Code Description N/A HEX 610-40 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 40 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582229 | Model Code Description N/A HEX 610-50 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 50 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582230 | Model Code Description N/A HEX 610-60 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 60 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582231 | Model Code Description N/A HEX 610-70 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 70 | Depth N/A 4.37 in111 mm | Width N/A 12.20 in310 mm | Core Products |
| 2582234 | Model Code Description N/A HEX 615-10 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 10 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582241 | Model Code Description N/A HEX 615-100 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 100 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582235 | Model Code Description N/A HEX 615-20 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 20 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582236 | Model Code Description N/A HEX 615-30 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 30 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582237 | Model Code Description N/A HEX 615-40 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 40 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582238 | Model Code Description N/A HEX 615-50 NPT 1" (PRF) | Port Size N/A 1 in. | Number of Plates (N) N/A 50 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582239 | Model Code Description N/A HEX 615-60 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 60 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
| 2582240 | Model Code Description N/A HEX 615-80 NPT 1" | Port Size N/A 1 in. | Number of Plates (N) N/A 80 | Depth N/A 4.37 in111 mm | Width N/A 20.71 in526 mm | Core Products |
