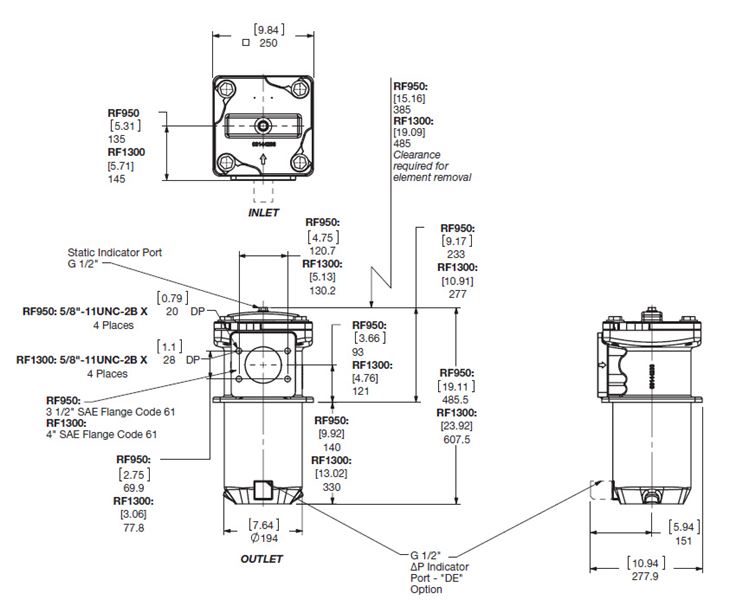

Specifications

Type

 N/A Return Line Filter

Model Code Description

 N/A RF ON 1300VP10LE1.1/16

Filter Type

 N/A In-Tank/Inline

Size

 N/A 1300

Flow Capacity

 N/A 343 gpm1300 L/min

Materials of Construction Housing

 N/A Ductile Iron

Operating Pressure [Max]

 N/A 25 bar360 psi

Inlet Port Configuration

 N/A SAE Flange Code 61 Inlet Connections

Type of Connection

 N/A SAE 64 Flange - Inlet and Outlet

Filter Element Material

 N/A Optimicron®

Filter Rating

 N/A 10 µm

Indication Type

 N/A LE = Electric Switch and Pop-Up

Weight

 N/A 260 lb

Type Number

 N/A Standard Connection

BUn

 N/A EA

Division

 N/A HYDRAULIC AND LUBE FILTERS

Product Group Family

 N/A FILTERS-LOW PRESSURE (?360 PSI)

Product

 N/A FILTERS-LOW PRESSURE (< 360PSI)

Technical Specifications

Construction Material for Head

 N/A Ductile Iron

Mounting Method

 N/A 4 Mounting Holes - Filter Housing

Materials of Construction Lid

 N/A Ductile Iron

Maximum Temperature

 N/A 100 ºC212 ºF

Minimum Temperature

 N/A -10 ºC14 ºF

Standard Bypass Valve Cracking Pressure (+10%) (Δ)

 N/A 43 psid3 bar

Optional Bypass Valve Cracking Pressure (+10%)

 N/A 87 psid6 bar

Housing Fatigue Pressure Rating at 700,000 Cycles

 N/A 33 bar478 psi

Housing Working Pressure Rating

 N/A 360 psi25 bar

Note for Housing Pressure Rating

 N/A All RF Filters MAWP reduce to 7 bar (101.5 psi) when using the following "VMF" and "VR" indicators: B, BM, E, ES, GC, LE, LZ.

Burst Pressure

 N/A 3045 psi210 bar

Element Collapse Pressure Rating

 N/A 290 psid20 bar

Standard Indicator Trip Pressure

 N/A 29 psi2 bar

Optional Indicator Trip Pressure

 N/A 72 psi5 bar

Tolerance for Indicator Trip Pressure

 N/A -10 %

Direction of Inlet Flow

 N/A Side

Direction of Outlet Flow

 N/A Bottom

Fluid Temperature Range

 N/A -10 to 100 ºC14 to 212 ºF

Fluid Compatibility

N/A Compatible with all hydrocarbon based, synthetic, water glycol, oil/water emulsion, and high water based fluids when the appropriate seals are selected.

Features

N/A

  • RF 30 filters are constructed of polyamide plastic.
  • RF 60 - 330 filters are constructed of aluminum material. Aluminum alloy is water tolerant - anodization is not required for high water based fluids (HWBF).
  • RF 660 - 1300 filters are constructed of ductile iron.
  • Non-welded housing design reduces stress concentrations and prevents fatigue failure.
  • Inlet/outlet port options include NPT, SAE straight thread O-ring boss, and SAE 4-bolt flange to allow easy installation without costly adapters.
  • O-ring seals are used to provide positive, reliable sealing. Choice of O-ring materials (nitrile rubber, fluorocarbon elastomer, ethylene propylene rubber) provides compatibility with petroleum oils, synthetic fluids, water-glycols, oil/water emulsions, and high water base fluids.
  • Bolt-on lid requires minimal clearance for removal.
  • Reusable contamination basket prevents loss of retained contaminants into the reservoir during element replacement.
  • Single piece casting provides rigidity for inline or in-tank mounting.

Application

N/A

  • Agricultural
  • Automotive
  • Construction
  • Gearboxes
  • Industrial
  • Steel/Heavy Industry

Note

N/A This filter is configured with an ..... R .... type (return/low pressure) element, so if the filter requires a bypass, the bypass is located in the closed end cap of the cartridge element.
