The filter skid needs to be order together 2 new 27-inch filter elements. Pump flow rate is 14 GPM and is good for reservoir volumes up to 6000 liters. Unit is mounted on a stationary stand and is supplied with 10 feet, 1-1/4 inch inlet and outlet hoses.
Unit of Measure

Specifications

Series

 N/A OF5HD = Dual Filter System

Type

 N/A Offline Filtration System

Seals

 N/A Buna N

Weight

 N/A 53.2 kg117 lb

Options

 N/A G2185 = For 14 gpm Unit; Up to 2500 SUS Fluids; Flow Reduced to ~10 gpm

Operating Temperature [Max]

 N/A -29 to 65 ºC-20 to 150 ºF

Flow

 N/A 14 gpm53 L/min

Manifold and Cap Material

 N/A Cast Aluminum

Element Case Material

 N/A Steel

Max Viscosity

 N/A 1000 SUS216 cSt

Note for Max Viscosity

 N/A Higher viscosity version available.

Alternate Current (AC) Voltage

 N/A 115 V575 V

Motor Power

 N/A 1-1/2 hp

Motor Phase

 N/A 1 3

Frequency

 N/A 60 Hz

Compatibility

 N/A All petroleum based hydraulic fluid. Contact factory for use with other fluids.

Bypass Valve Setting (Cracking)

 N/A 2 bar30 psi

Features

Features

 N/A
  • Modular base eliminates connections between components and minimizes leakage
  • Base-ported filter provides easy element service from the top cap
  • Visual Dirt Alarm® indicates when filter element needs to be changed
  • Two 7/16 - 20 UNF sampling port included on all models

Additional Information

Additional Information

 N/A The suction hose is equipped with a 3-foot wand for insertion into the tank top. The return hose has a female JIC end. Power supply: 575 VAC/3 ph/60 Hz.

A power supply cable (approx. 15 feet) is included with flying lead ends for hook-up to customer supplied panel or plug.

Additional replacement filter elements will need to be purchased as necessary.

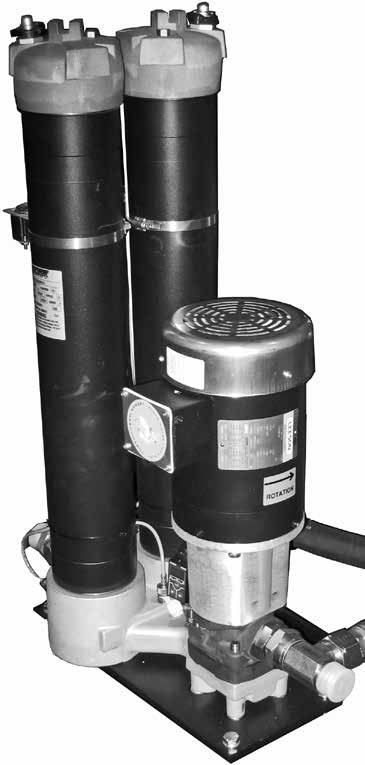

HYDAC’s off-line Kidney Loop System is a stationary version of the mobile filtration system (OFCS & OFCD). It is a compact, self-contained filtration system equipped with high efficiency, high capacity elements capable of removing particulate contamination and/or water quickly, conveniently and economically.

HY-TRAX manual fluid sampling system: HYDAC now offers the HY-TRAX manual fluid sampling system as an additional option allowing for real-time fluid condition monitoring. ISO particle counts are visually displayed on the CS1000. Users will now know when they have reached their desired ISO contamination levels.

CSI-C-11: HYDAC also offers the CSI-C-11 Communication Interface for WLAN or LAN transmission of data and data storage capabilities.

Application

Application

 N/A
  • Supplementing in-line filtration by system filters when adequate turnover cannot be attained
  • Large volume systems requiring multiple filters in different locations
  • Cleaning up a hydraulic system following component replacement

Note

Note

 N/A Contact factory if EPR seals are required.

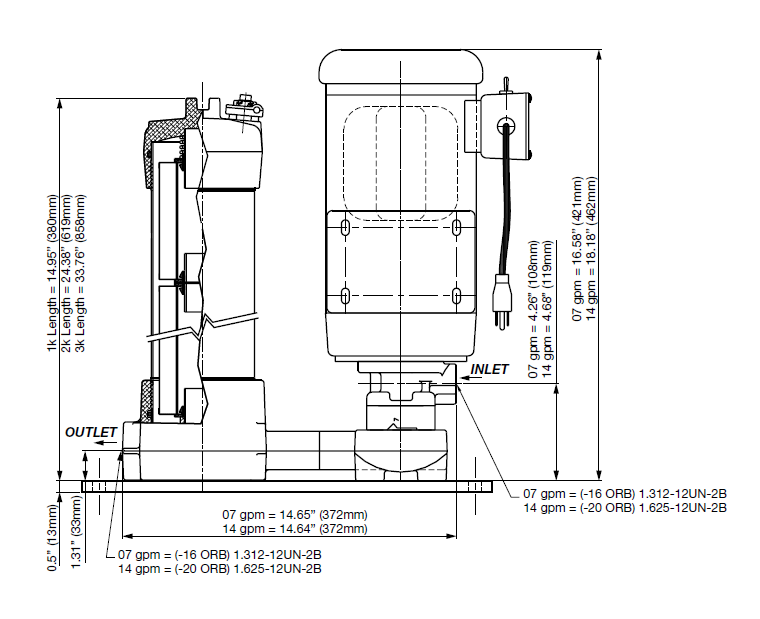

Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
