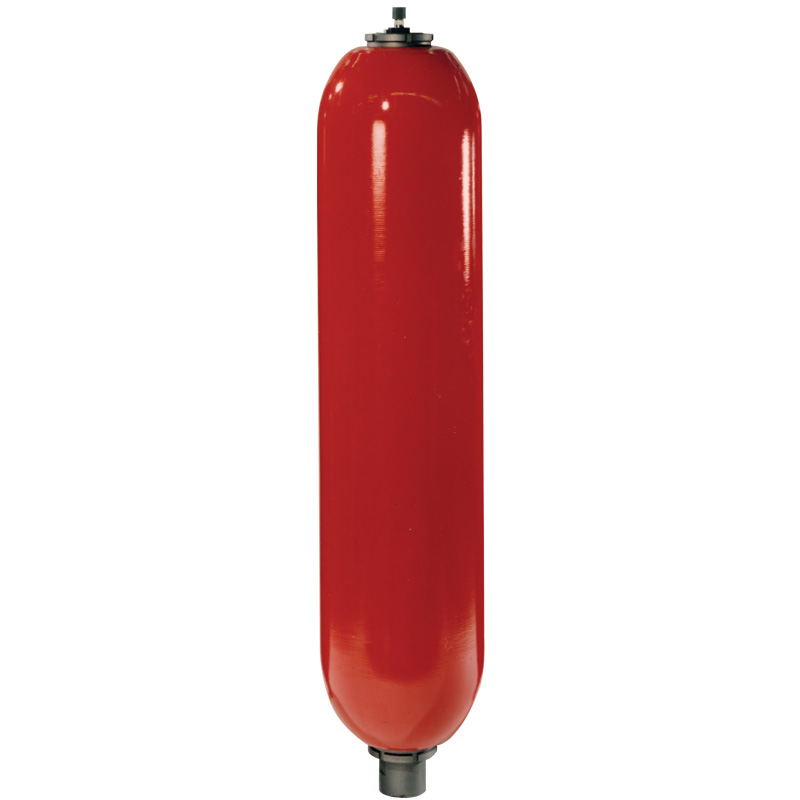

  • Accum_Bladder_SB330TR
Bladder accumulators are a very versatile and cost effective option for numerous types of hydraulic systems involving energy storage, shock absorption, pulsation dampening, leakage loss compensation and volume compensation. They are a first choice for a great variety of general applications and have the widest range of standard sizes and model options. Bladder accumulators also have very quick shock response characteristics in sizes much larger than diaphragm accumulators. The top repairable accumulator permits service and maintenance of the bladder without removing the accumulator from the hydraulic system.
1 - 25 of 41 | Results Per Page | View | Unit of Measure
1 2
Request a Quote Compare Items Search by Specification
Clear Filter

Fluid Port Connection

  • BSPP (ISO 228) Radial Seal Design NOT Axial
  • NPT (ANSI B1.2)
  • SAE (ANSI B1.1)
  • SAE Flange

Connection Size

Line Connection

  • Flanged
  • Threaded

Country of Installation

  • Canada (CRN Registered)
  • USA/ASME

Typical Fluids

  • Chlorinated Hydrocarbons
  • Mineral Oil
  • Phosphate Ester & Brake Fluids

Part Number

Model Code Description

Fluid Port Connection

Maximum Working Pressure

Effective Gas Volume

Dimension A

Core Products

N/A SB330TR-10A1/112S1-210A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/112S1-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/112S1-248A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 248 bar3600 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/112S-210A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/112S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/112S-210D N/A NPT (ANSI B1.2) N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/113S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10A1/116S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10F1/112S-210E N/A SAE Flange N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-10S11/112S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 2.45 gal566 in³ N/A 21.3 in540 mm
N/A SB330TR-20A1/112S1-210A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20A1/112S1-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20A1/112S1-248A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 248 bar3600 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20A1/112S-210A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20A1/112S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20A1/112S-248C N/A SAE (ANSI B1.1) N/A 248 bar3600 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20A1/116S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20F1/112S-210E N/A SAE Flange N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20S11/112S-210D N/A NPT (ANSI B1.2) N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-20S11/115S-210D N/A NPT (ANSI B1.2) N/A 210 bar3000 psi N/A 4.87 gal1125 in³ N/A 34.8 in883 mm
N/A SB330TR-32A1/112S1-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 9.00 gal2080 in³ N/A 55.0 in1397 mm
N/A SB330TR-32A1/112S1-210D N/A NPT (ANSI B1.2) N/A 210 bar3000 psi N/A 9.00 gal2080 in³ N/A 55.0 in1397 mm
N/A SB330TR-32A1/112S-210A N/A BSPP (ISO 228) Radial Seal Design NOT Axial N/A 210 bar3000 psi N/A 9.00 gal2080 in³ N/A 55.0 in1397 mm
N/A SB330TR-32A1/112S-210C N/A SAE (ANSI B1.1) N/A 210 bar3000 psi N/A 9.00 gal2080 in³ N/A 55.0 in1397 mm
N/A SB330TR-32A1/112S-210D N/A NPT (ANSI B1.2) N/A 210 bar3000 psi N/A 9.00 gal2080 in³ N/A 55.0 in1397 mm
