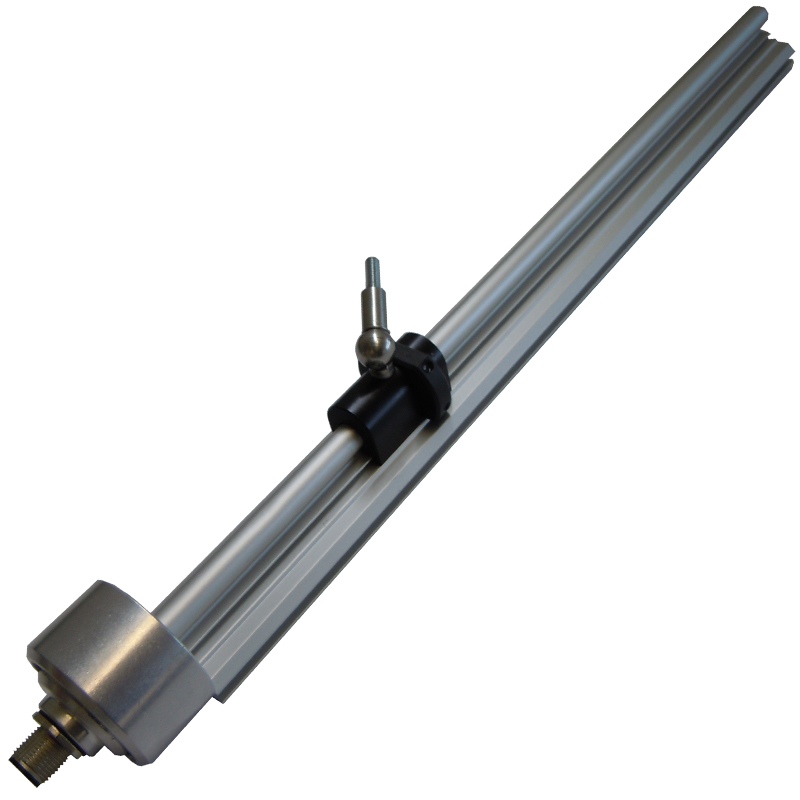

The HLT 2550 is a linear position transmitter which, due to its compact design, was developed in particular for use in applications where space is very limited. The measuring profile can be individually adapted to various
mounting conditions by means of spacers. The HLT 2550 is suited for measuring ranges up to 3 m.

The different output signals (analog current / voltage) enable connection to all HYDAC ELECTRONIC GmbH measurement and control devices as well as connection to standardmore
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1

Part Number

Model Code Description

Mounting Type

Measuring Range

Output Type

Electrical Connection

N/A HLT 2550-L2-006-C01-0130-000 N/A Compact Profile Linear Transducer with Top Magnet Guidance Joint N/A 0 to 130 mm N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole
N/A HLT 2550-L2-006-C01-0300-000 N/A Compact Profile Linear Transducer with Top Magnet Guidance Joint N/A 0 to 300 mm N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole
N/A HLT 2550-L2-006-C01-0950-000 N/A Compact Profile Linear Transducer with Top Magnet Guidance Joint N/A 0 to 950 mm N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole
