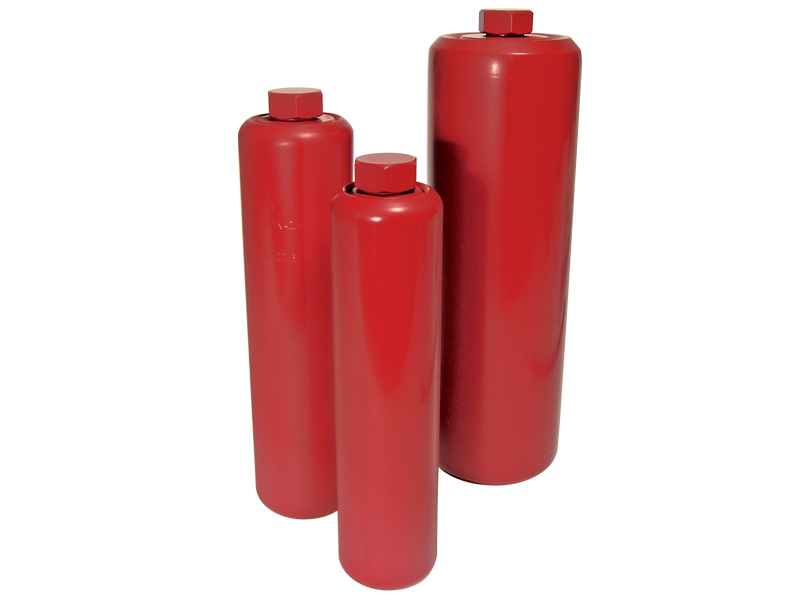

The piston accumulator series SK280 is a weight optimized, non-repairable design. The non-repairable design and special production process of these HYDAC accumulators save cost, making this series an economic option. Cost-effective - due to the non-repairable design and an optimized production process, Weight reduced series, Reduced installation space, Standard-gas valve (HYDAC Version 1) with integrated M28 x 1.5 male thread, Quick delivery for models with standard connection, SAE fluid ports are available, PED/CE pressure code certification.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1

Part Number

Item Name

Connection Size

Volume Capacity

Model Code Description

Diameter

Core Products

N/A SK 280 Series 335 mm Height Piston Accumulator N/A SAE #8 N/A 0.5 L N/A SK280-0.5/3218U-280ACF-VB-05 N/A 60 mm
N/A SK 280 Series 620 mm Height Piston Accumulator N/A SAE #12 N/A 1.5 L N/A SK280-1.5/3218U-280ACH-VB-08 N/A 95 mm
N/A SK 280 Series 445 mm Height Piston Accumulator N/A SAE #8 N/A 1 L N/A SK280-1/3218U-280ACF-VB-05 N/A 60 mm
N/A SK 280 Series 510 mm Height Piston Accumulator N/A SAE #12 N/A 2 L N/A SK280-2/3218U-280ACH-VB-08 N/A 95 mm
N/A SK 280 Series 395 mm Height Piston Accumulator N/A SAE #16 N/A 2 L N/A SK280-2/3218U-280ACK-VB-10 N/A 125 mm
N/A SK 280 Series 520 mm Height Piston Accumulator N/A SAE #16 N/A 3 L N/A SK280-3/3218U-280ACK-VB-10 N/A 125 mm
N/A SK 280 Series 650 mm Height Piston Accumulator N/A SAE #16 N/A 4 L N/A SK280-4/3218U-280ACK-VB-10 N/A 125 mm
