EDS 3100 Absolute Pressure Switch On HYDAC Technology Corporation

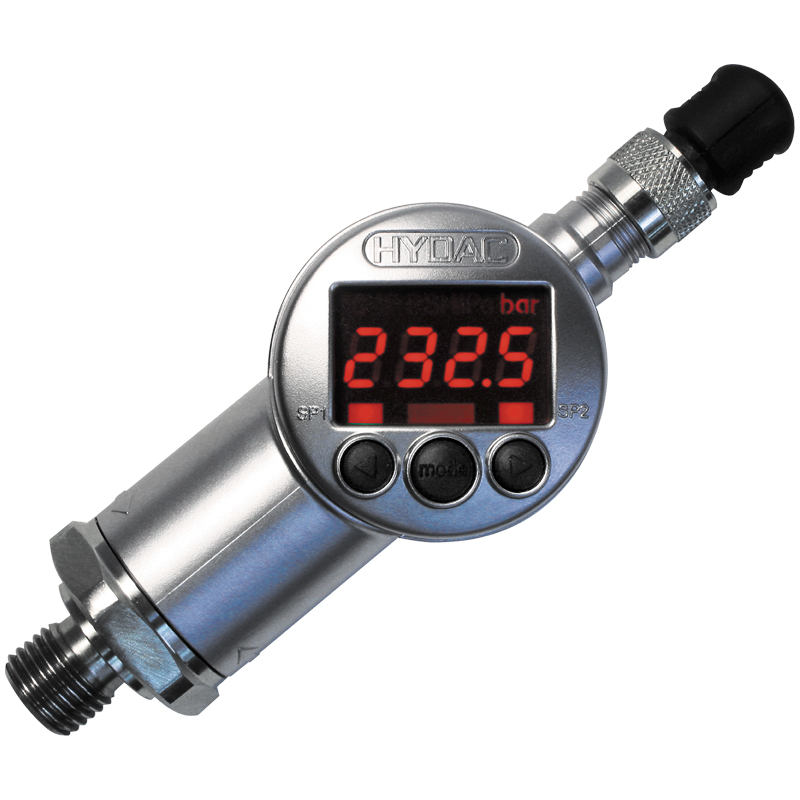

The EDS 3100 is a compact electronic pressure switch with integrated digital display for absolute pressure measurement in the low pressure range. It has a ceramic measurement cell with thick-layer strain gauge.

Depending on the particular version, the instrument can have one or two switching outputs, and there is the option of an additional switchable analogue output signal (4 .. 20 mA or 0 .. 10 V). A special design feature of the EDS 3100 is that the display can be moved in two planes. The device can be installed in almost any mounting position and the display can be turned to the optimum position without the usual additional expense of a mechanical adapter.

Part Number	Model Code Description	Mechanical Connection Type	Switch Type	Electrical Connection	Operating Pressure [Max]
909641	N/A EDS 3146-3-01.0-000-F1	N/A G1/4 A ISO 1179-2, Male	N/A 1 PNP Transistor Switching Output & 1 Analog Output	N/A Male, M12 x 1 (4 Pole)	N/A 1 bar
908635	N/A EDS 3146-3-02.5-000-F1	N/A G1/4 A ISO 1179-2, Male	N/A 1 PNP Transistor Switching Output & 1 Analog Output	N/A Male, M12 x 1 (4 Pole)	N/A 2.5 bar
921281	N/A EDS 3148-5-01.0-000-E1	N/A G1/4 A ISO 1179-2, Male	N/A 2 PNP Transistor Switching Output & 1 Analog Output	N/A Male, M12 x 1 (5 Pole)	N/A 1 bar
909148	N/A EDS 3186-1-0050-400-F1	N/A 1/4-18 NPT, Male	N/A 1 PNP Transistor Output	N/A Male, M12 x 1 (4 Pole)	N/A 50 psi
908842	N/A EDS 3186-3-0050-400-F1	N/A 1/4-18 NPT, Male	N/A 1 PNP Transistor Switching Output & 1 Analog Output	N/A Male, M12 x 1 (4 Pole)	N/A 50 psi
927800	N/A EDS 3188-5-0050-400-F1	N/A 1/4-18 NPT, Male	N/A 2 PNP Transistor Switching Output & 1 Analog Output	N/A Male, M12 x 1 (5 Pole)	N/A 50 psi

909641

N/A EDS 3146-3-01.0-000-F1

N/A G1/4 A ISO 1179-2, Male

N/A 1 PNP Transistor Switching Output & 1 Analog Output

N/A Male, M12 x 1 (4 Pole)

N/A 1 bar

908635

N/A EDS 3146-3-02.5-000-F1

N/A G1/4 A ISO 1179-2, Male

N/A 1 PNP Transistor Switching Output & 1 Analog Output

N/A Male, M12 x 1 (4 Pole)

N/A 2.5 bar

921281

N/A EDS 3148-5-01.0-000-E1

N/A G1/4 A ISO 1179-2, Male

N/A 2 PNP Transistor Switching Output & 1 Analog Output

N/A Male, M12 x 1 (5 Pole)

N/A 1 bar

909148

N/A EDS 3186-1-0050-400-F1

N/A 1/4-18 NPT, Male

N/A 1 PNP Transistor Output

N/A Male, M12 x 1 (4 Pole)

N/A 50 psi

908842

N/A EDS 3186-3-0050-400-F1

N/A 1/4-18 NPT, Male

N/A 1 PNP Transistor Switching Output & 1 Analog Output

N/A Male, M12 x 1 (4 Pole)

N/A 50 psi

927800

N/A EDS 3188-5-0050-400-F1

N/A 1/4-18 NPT, Male

N/A 2 PNP Transistor Switching Output & 1 Analog Output

N/A Male, M12 x 1 (5 Pole)

N/A 50 psi

Part Number

Model Code Description

Mechanical Connection Type

Switch Type

Electrical Connection

Operating Pressure [Max]
