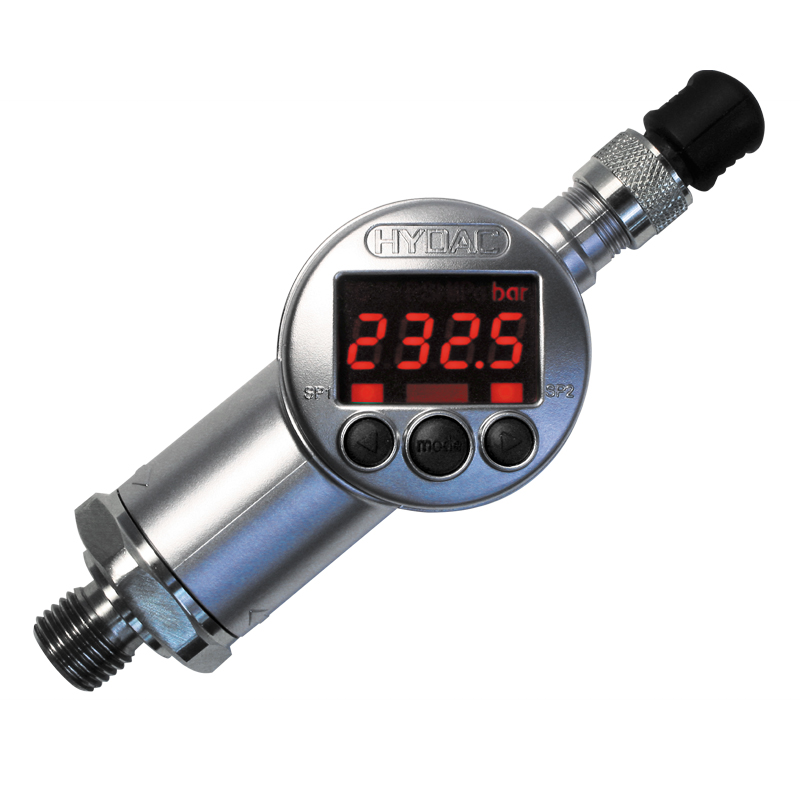

  • EDS_33XX_PressSwitch
The EDS 3300 is a compact electronic pressure switch with integrated digital display for relative pressure measurement in the low pressure range.

It has a ceramic measurement cell with thick-layer strain gauge. Depending on the particular version, the instrument can have one or two switching outputs, and there is the option of an additional switchable Analog output signal (4 to 20 mA or 0 to 10 V).

A special design feature of the EDS 3300 is that the display can be moved in two planes. The device can be installed in almost any mounting position and the display can be turned to the optimum position without the usual additional expense of a mechanical adapter.
1 - 25 of 60 | Results Per Page | View | Unit of Measure
1 2 3
Request a Quote Compare Items Search by Specification
Clear Filter

Input Measuring Pressure Range (bar)

Input Measuring Pressure Range (psi)

Input Mechanical Connection Size

  • 1/4-18 NPT, Male
  • G1/4 A, female
  • G1/4 A, male
  • G1/2 B, male

Seal Material

  • Copper, Ethylene Propylene Diene Monomer (EPDM)
  • Copper, Fluorocarbon Elastomer (FKM)
  • Ethylene Propylene Diene Monomer (EPDM)
  • Fluorocarbon Elastomer (FKM)

Switch Output Type

Part Number

Model Code Description

Input Measuring Pressure Range

Input Mechanical Connection Size

Switch Output Type

Electrical Connection

Core Products

N/A EDS 3316-3-0010-000-F1 N/A 10 bar N/A G1/2 B, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3316-3-0016-000-E1 N/A 16 bar N/A G1/2 B, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3316-3-0016-000-F1 N/A 16 bar N/A G1/2 B, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3318-5-0010-000-E1 N/A 10 bar N/A G1/2 B, male N/A 2 PNP Transistor Switching Outputs & 1 Analog Output N/A Male M12x1, 5 Pole
N/A EDS 3318-5-0016-000-F1 N/A 16 bar N/A G1/2 B, male N/A 2 PNP Transistor Switching Outputs & 1 Analog Output N/A Male M12x1, 5 Pole
N/A EDS 3318-5-06,0-000-F1 N/A 6 bar N/A G1/2 B, male N/A 2 PNP Transistor Switching Outputs & 1 Analog Output N/A Male M12x1, 5 Pole
N/A EDS 3346-1-0010-000-E1 N/A 10 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A EDS 3346-1-0010-000-F1 N/A 10 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A EDS 3346-1-0016-000-F1 N/A 16 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A EDS 3346-1-06,0-000-F1 N/A 6 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A EDS 3346-2-0010-000-E1 N/A 10 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-0010-000-F1 N/A 10 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-0016-000-E1 N/A 16 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-0016-000-F1 N/A 16 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-01.0-000-F1 N/A 1 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-02,5-000-F1 N/A 2.5 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-02.5-000-E1 N/A 2.5 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-06,0-000-E1 N/A 6 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-2-06,0-000-F1 N/A 6 bar N/A G1/4 A, male N/A 2 PNP Transistor Switching Outputs N/A Male M12x1, 4 Pole
N/A EDS 3346-3-0010-000-E1 N/A 10 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3346-3-0010-000-F1 N/A 10 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3346-3-0016-000-E1 N/A 16 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3346-3-0016-000-F1 N/A 16 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3346-3-02.5-000-F1 N/A 2.5 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
N/A EDS 3346-3-06,0-000-E1 N/A 6 bar N/A G1/4 A, male N/A 1 PNP Transistor Switching Output & 1 Analog Output N/A Male M12x1, 4 Pole
