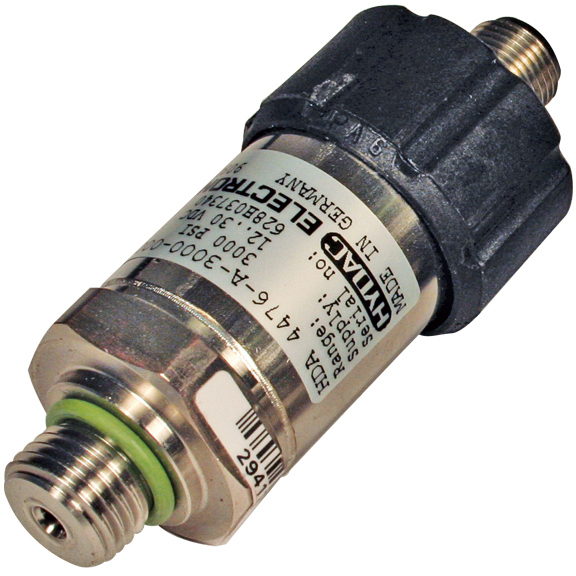

  • HDA_4100_4300_4400_4700_Absol_Ship_PressTrans.jpg
The pressure transmitter series HDA 4100 has a ceramic pressure measurement cell with thick-layer strain gauge which has been specially developed for measuring absolute pressure in the low-pressure range. The output signals 4 .. 20 mA or 0 .. 10 V allow connection of all HYDAC ELECTRONIC GMBH measurement and control devices as well as industry standard open- and closed-loop control instruments. The main fields of application are low pressure applications in hydraulics and pneumatics, particularly in refrigeration and air-conditioning technology and pharmaceutical industries.
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request a Quote Compare Items

Part Number

Model Code Description

Mechanical Connection Type

Output Signal

Electrical Connection

Operating Pressure [Max]

Core Products

N/A HDA 4145-A-02.5-000-E1 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 2.5 bar
N/A HDA 4145-A-02.5-000-F1 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 2.5 bar
N/A HDA 4146-A-0020-000-F1(PSI) N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 20 psi
N/A HDA 4146-B-01.0-000-F1 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 1 bar
N/A HDA 4175-A-0020-000-F1(PSI) N/A 9/16-18 UNF 2A (SAE 6 Male) N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 20 psi
N/A HDA 4176-A-0020-000-F1(PSI) N/A 9/16-18 UNF 2A (SAE 6 Male) N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 20 psi
N/A HDA 4185-A-0015-000-F1 (PSI) N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 15 psi
N/A HDA 4185-A-0050-000-F1 (PSI) N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 50 psi
N/A HDA 4185-B-0050-000-F1(PSI) N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 50 psi
N/A HDA 4185-B-0075-000-F1 N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 75 psi
N/A HDA 4186-A-0015-000-F1(PSI) N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 15 psi
N/A HDA 4186-B-0015-000-F1 (PSI) N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 15 psi
N/A HDA 4186-B-0050-F1 (PSI) N/A 1/4-18 NPT, Male N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 50 psi
