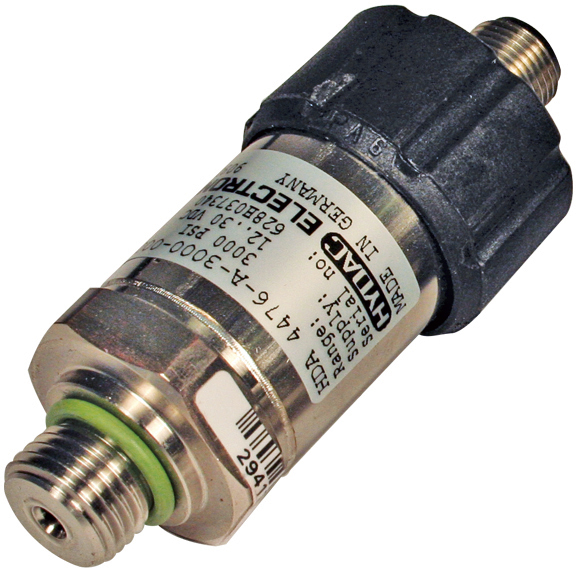

  • HDA_4100_4300_4400_4700_Absol_Ship_PressTrans.jpg
This pressure transmitter has been specially developed for shipbuilding applications and is based on the HDA 4000 series.

The HDA 4400 is designed to measure relative pressures in the high pressure range by means of its sensor measurement cell with thin-film strain gauge on a Stainless Steel membrane.

The evaluation electronics converts the measured pressure into a proportional analogue signal of 4 .. 20 mA. The electronic module is completely potted to protect it against humidity, vibrations and shock, and is enclosed in a solid Stainless Steel housing.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request a Quote Compare Items

Part Number

Model Code Description

Mechanical Connection Type

Output Signal

Electrical Connection

Operating Pressure [Max]

Core Products

N/A HDA 4445-A-0040-S00 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 40 bar
N/A HDA 4445-A-0060-S00 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 60 bar
N/A HDA 4445-A-0250-S00 (250 BAR) N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 250 bar
N/A HDA 4445-A-0400-S00 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, EN175301-803, 3 Pole + PE N/A 400 bar
N/A HDA 4446-A-0006-S00 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 6 bar
N/A HDA 4476-A-0500-S00(PSI) N/A 9/16-18 UNF 2A (SAE 6 Male) N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 500 psi
N/A HDA 4476-A-6000-S00(PSI) N/A 9/16-18 UNF 2A (SAE 6 Male) N/A 4 to 20 mA N/A Male, M12 x 1, 4 Pole N/A 6000 psi
