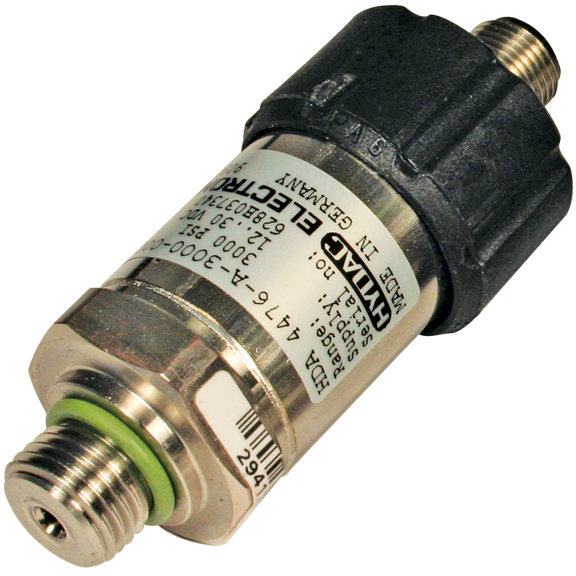

  • HDA_44XXPressTrans
The pressure transmitter series HDA 4400 has a pressure measurement cell with thin-film strain gauge on a stainless steel membrane.

The output signals 4 to 20 mA or 0 to 10 V enable connection to all measurement and control devices of HYDAC ELECTRONIC GMBH as well as standard evaluation systems (e.g. PLC controls).

The main fields of application are in mobile or industrial hydraulics and pneumatics.
1 - 25 of 82 | Results Per Page | View | Unit of Measure
1 2 3 4
Request a Quote Compare Items Search by Specification
Clear Filter

Mechanical Connection Type

  • 9/16-18 UNF2A (SAE 6 Male)
  • G1/4 A ISO 1179-2, Male

Output Signal (mA)

  • 4 to 20

Output Signal (V)

  • 0 to 10

Electrical Connection

Input Measuring Range (bar)

Input Measuring Range (psi)

Part Number

Model Code Description

Mechanical Connection Type

Output Signal

Electrical Connection

Input Measuring Range

Core Products

N/A HDA 4444-A-060-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 60 bar
N/A HDA 4444-A-100-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 100 bar
N/A HDA 4444-A-250-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 250 bar
N/A HDA 4444-A-400-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 400 bar
N/A HDA 4444-A-600-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 600 bar
N/A HDA 4444-B-060-000 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 60 bar
N/A HDA 4444-B-400-000 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 400 bar
N/A HDA 4444-B-400-031(350bar) N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 4 Pole Binder Series 714 M18 (Mating Connector Not Supplied) N/A 350 bar
N/A HDA 4445-A-016-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 16 bar
N/A HDA 4445-A-016-031 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 16 bar
N/A HDA 4445-A-060-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 60 bar
N/A HDA 4445-A-100-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 100 bar
N/A HDA 4445-A-160-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 160 bar
N/A HDA 4445-A-250-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 250 bar
N/A HDA 4445-A-400-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 400 bar
N/A HDA 4445-A-400-185 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 400 bar
N/A HDA 4445-A-400-188 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 400 bar
N/A HDA 4445-A-600-000 N/A G1/4 A ISO 1179-2, Male N/A 4 to 20 mA N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 600 bar
N/A HDA 4445-B-016-000 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 16 bar
N/A HDA 4445-B-040-004 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 40 bar
N/A HDA 4445-B-060-000 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 60 bar
N/A HDA 4445-B-100-000 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 100 bar
N/A HDA 4445-B-250-000 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 250 bar
N/A HDA 4445-B-250-000+PP N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 250 bar
N/A HDA 4445-B-250-004 N/A G1/4 A ISO 1179-2, Male N/A 0 to 10 V N/A Male, 3 Pole + PE, EN175301-803 (Mating Connector Supplied) N/A 250 bar
