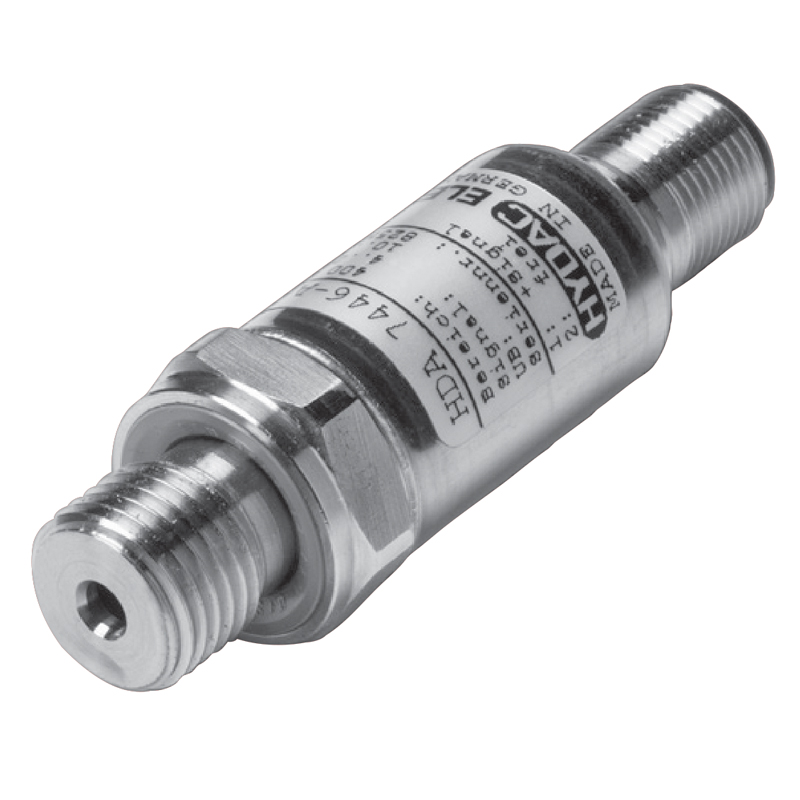

  • HDA_74XXPressTrans
The pressure transmitter series HDA 7400 combines excellent technical data with highly compact design.

The HDA 7446 was specifically developed for OEM applications, especially for use in confined cavities. A sensor cell with a thin-film strain gauge on a stainless steel membrane is the basis for a robust, long-life pressure transmitter.
1 - 7 of 7 | Results Per Page | View | Unit of Measure
1
Request a Quote Compare Items

Part Number

Model Code Description

Mechanical Connection Type

Output Signal

Electrical Connection

Input Measuring Range

Core Products

N/A HDA 7476-A-0300-000 (psi) N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 300 psi
N/A HDA 7476-A-0500-000(psi) N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 500 psi
N/A HDA 7476-A-1000-000 N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 1000 psi
N/A HDA 7476-A-3000-000 N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 3000 psi
N/A HDA 7476-A-6000-000 N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 4 to 20 mA N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 6000 psi
N/A HDA 7476-B-1500-000(psi) N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 0 to 10 V N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 1500 psi
N/A HDA 7476-B-3000-000 N/A 9/16-18 UNF 2A Male (SAE 6 Male) N/A 0 to 10 V N/A Male M12 x 1, 4 Pole (Connector Not Supplied) N/A 3000 psi
