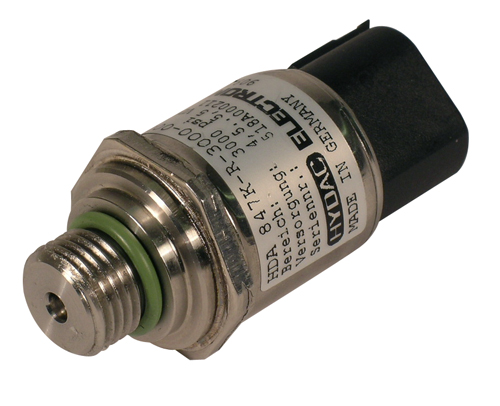

The pressure transmitter series HDA 8400 has been specifically developed for the OEM market, e.g. in mobile applications. Like most of our pressure transmitter series, the HDA 8400 is based on a robust and long-life, thin-film sensor.

All parts (sensor and pressure connection) which are in contact with the fluid are made of stainless steel and are welded together. This means that there are no sealing points in the interior of the sensor. The possibility of leakage is excluded.

The pressure transmitters are available in various pressure ranges from 0 .. 500 psi to 0 .. 9000 psi. For integration into modern controls, standard analog output signals are available, e.g. 4 .. 20 mA, 0 .. 5 V, 1 .. 6 V or 0 .. 10 V. Ratiometric output signals are also available.

For the electrical connection, different types of integrated connections are available.

A basic accuracy of max. ≤± 0.5 % FS B.F.S.L., combined with a small temperature drift, ensures a broad range of applications for the HDA 8400.

Part Number	Model Code Description	Mechanical Connection Type	Output Signal	Electrical Connection	Input Measuring Range
922215	N/A HDA 8466-A-0500-000(psi)	N/A SAE 4, Male (7/16-20 UNF 2A)	N/A 4-20 mA, 2 Conductor	N/A Male M12, 4 Pole	N/A 500 psi
922216	N/A HDA 8466-A-5000-000(psi)	N/A SAE 4, Male (7/16-20 UNF 2A)	N/A 4-20 mA, 2 Conductor	N/A Male M12, 4 Pole	N/A 5000 psi
922821	N/A HDA 8466-A-2000-000(psi)	N/A SAE 4, Male (7/16-20 UNF 2A)	N/A 4-20 mA, 2 Conductor	N/A Male M12, 4 Pole	N/A 2000 psi
923557	N/A HDA 846K-A-5000-000(psi)	N/A SAE 4, Male (7/16-20 UNF 2A)	N/A 4-20 mA, 2 Conductor	N/A Deutsch DT04-3P, 3 Pole	N/A 5000 psi
923811	N/A HDA 847K-A-7500-000(PSI)	N/A SAE 6, Male (9/16-18 UNF 2A)	N/A 4-20 mA, 2 Conductor	N/A Deutsch DT04-3P, 3 Pole	N/A 7500 psi
924425	N/A HDA 8486-B-5000-000 (PSI)	N/A 1/4"-18 NPT, Male	N/A 0-10 V, 3 Conductor	N/A Male M12, 4 Pole	N/A 5000 psi
925688	N/A HDA 8486-B-3000-000(PSI)	N/A 1/4"-18 NPT, Male	N/A 0-10 V, 3 Conductor	N/A Male M12, 4 Pole	N/A 3000 psi
926919	N/A HDA 846K-B-3500-000(PSI)	N/A SAE 4, Male (7/16-20 UNF 2A)	N/A 0-10 V, 3 Conductor	N/A Deutsch DT04-3P, 3 Pole	N/A 3500 psi

922215

N/A HDA 8466-A-0500-000(psi)

N/A SAE 4, Male (7/16-20 UNF 2A)

N/A 4-20 mA, 2 Conductor

N/A Male M12, 4 Pole

N/A 500 psi

922216

N/A HDA 8466-A-5000-000(psi)

N/A SAE 4, Male (7/16-20 UNF 2A)

N/A 4-20 mA, 2 Conductor

N/A Male M12, 4 Pole

N/A 5000 psi

922821

N/A HDA 8466-A-2000-000(psi)

N/A SAE 4, Male (7/16-20 UNF 2A)

N/A 4-20 mA, 2 Conductor

N/A Male M12, 4 Pole

N/A 2000 psi

923557

N/A HDA 846K-A-5000-000(psi)

N/A SAE 4, Male (7/16-20 UNF 2A)

N/A 4-20 mA, 2 Conductor

N/A Deutsch DT04-3P, 3 Pole

N/A 5000 psi

923811

N/A HDA 847K-A-7500-000(PSI)

N/A SAE 6, Male (9/16-18 UNF 2A)

N/A 4-20 mA, 2 Conductor

N/A Deutsch DT04-3P, 3 Pole

N/A 7500 psi

924425

N/A HDA 8486-B-5000-000 (PSI)

N/A 1/4"-18 NPT, Male

N/A 0-10 V, 3 Conductor

N/A Male M12, 4 Pole

N/A 5000 psi

925688

N/A HDA 8486-B-3000-000(PSI)

N/A 1/4"-18 NPT, Male

N/A 0-10 V, 3 Conductor

N/A Male M12, 4 Pole

N/A 3000 psi

926919

N/A HDA 846K-B-3500-000(PSI)

N/A SAE 4, Male (7/16-20 UNF 2A)

N/A 0-10 V, 3 Conductor

N/A Deutsch DT04-3P, 3 Pole

N/A 3500 psi

Part Number

Model Code Description

Mechanical Connection Type

Output Signal

Electrical Connection

Input Measuring Range
