  • ETS_32XXTempSwitch

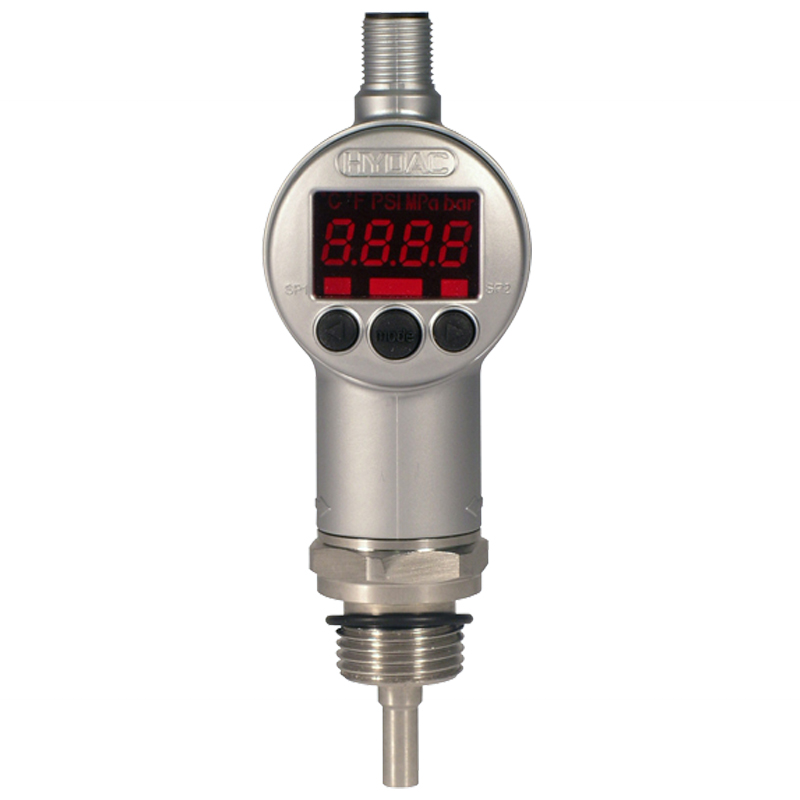

The ETS 3200 is a compact electronic temperature switch with digital display.

With its integrated temperature probe, the ETS 3200 is particularly suitable for direct tank installation and is available in various lengths.

Different output models with one or two switching outputs, optionally with an additional analog output signal, offer a variety of application possibilities.

The switching points and the associated hysteresis can be adjusted very quickly and easily using the keypad.
1 - 14 of 14 | Results Per Page | View | Unit of Measure
1
Request a Quote Compare Items

Part Number

Model Code Description

Measuring Range

Input Probe Length

Input Mechanical Connection Type

Switch Outputs Type

Electrical Connection

Core Products

N/A ETS 3226-2-018-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 0.71 in18 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-2-100-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 3.93 in100 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-2-250-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 9.84 in250 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-2-350-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 13.77 in350 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-3-018-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 0.71 in18 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-3-100-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 3.93 in100 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-3-100-400 N/A -25 to 100 ºC-13 to 212 ºF N/A 3.93 in100 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-3-250-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 9.84 in250 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3226-3-350-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 13.77 in350 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 4 Pole
N/A ETS 3228-5-018-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 0.71 in18 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 5 Pole
N/A ETS 3228-5-100-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 3.93 in100 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 5 Pole
N/A ETS 3228-5-100-400 N/A -25 to 100 ºC-13 to 212 ºF N/A 3.93 in100 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 5 Pole
N/A ETS 3228-5-250-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 9.84 in250 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 5 Pole
N/A ETS 3228-5-350-000 N/A -25 to 100 ºC-13 to 212 ºF N/A 13.77 in350 mm N/A G1/2 A DIN 3852, Male N/A PNP Transistor Switching Output N/A Male M12x1, 5 Pole
