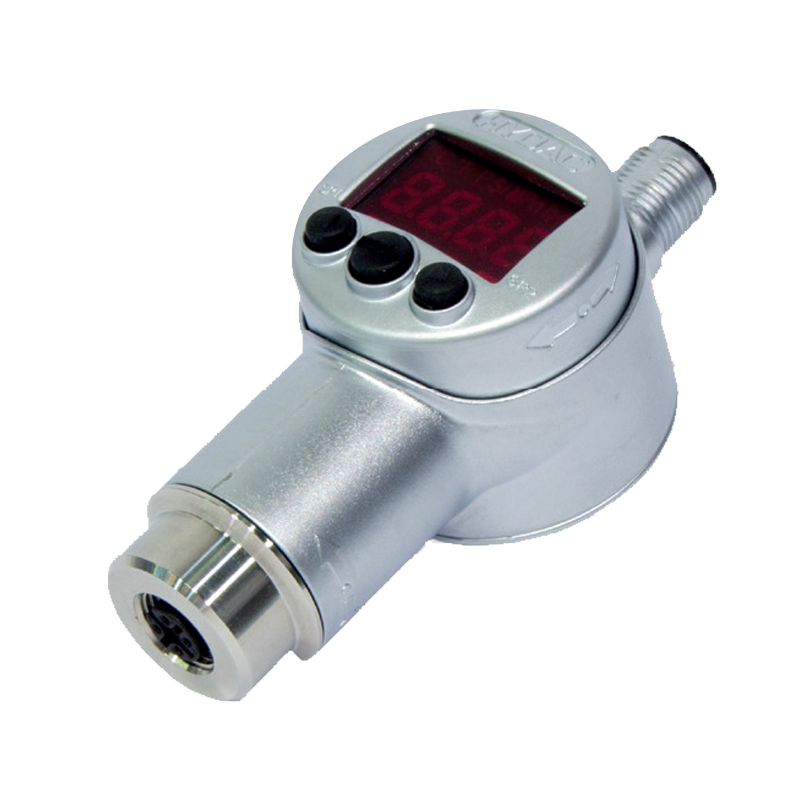

  • ETS_38XXTempSwitch
The ETS 3800 is a compact electronic temperature switch with a 4-digit display.

The version for a separate temperature probe has a measuring range of -22..+302 ºF and is used primarily with the TFP 100 temperature probe which was specially developed for tank installation.

It is also possible, however, to evaluate commonly-available PT 100 temperature probes.

Different output versions with one or two switching outputs, and with the possible option of an additional analog output signal, offer a variety of application possibilities.

The switching points and the associated hysteresis can be adjusted very quickly and easily using the keypad.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request a Quote Compare Items

Part Number

Model Code Description

Measuring Range

Input Mechanical Connection Type

Electrical Connection

Switching Outputs

Core Products

N/A ETS 3866-2-000-000 N/A -30 to 150 ºC-22 to 302 ºF N/A M12 Female Cable Connection N/A Male M12x1, 4 Pole N/A 2 Switching Outputs
N/A ETS 3866-3-000-000 N/A -30 to 150 ºC-22 to 302 ºF N/A M12 Female Cable Connection N/A Male M12x1, 4 Pole N/A 1 Switching Output And 1 Analog Output
N/A ETS 3868-5-000-000 N/A -30 to 150 ºC-22 to 302 ºF N/A M12 Female Cable Connection N/A Male M12x1, 5 Pole N/A 2 Switching Outputs And 1 Analog Output
N/A ETS 3868-5-000-400 N/A -30 to 150 ºC-22 to 302 ºF N/A M12 Female Cable Connection N/A Male M12x1, 5 Pole N/A 2 Switching Outputs And 1 Analog Output
