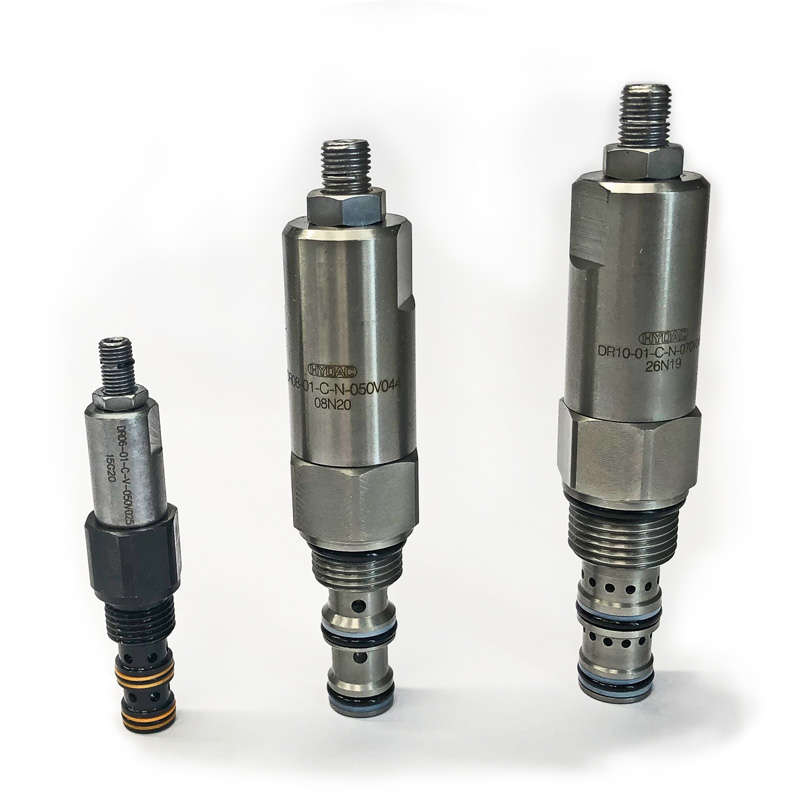

  • CV-PressureReducingRelieving_DRgrp
1 - 25 of 118 | Results Per Page | View | Unit of Measure
1 2 3 4 5
Request a Quote Compare Items Search by Specification
Clear Filter

Body

  • Aluminum
  • Cartridge only
  • No Line Body, Cartridge Only
  • Steel

Seals

  • Buna-N
  • Viton®

Adjustment Range (bar)

Adjustment Range (psi)

Optional Setting

Nominal Flow (gpm)

  • 4
  • 16

Nominal Flow (L/min)

  • 15
  • 60

Connection Type

  • Cartridge Only
  • G3/8
  • SAE-6
  • SAE-8

Valve Operator

  • Allen Head
  • Allen Head with Cover Cap
  • Factory Pre-Set / Non-Adjustable
  • Knurled Hand Knob

Part Number

Model Code Description

Seals

Adjustment Range

Nominal Flow

Valve Operator

Core Products

N/A DR08-01-AB3-N-220V N/A Buna-N N/A 45 to 152 bar653 to 2200 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AB3-N-300V N/A Buna-N N/A 74 to 210 bar1073 to 3000 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-N-050H N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Knurled Hand Knob
N/A DR08-01-AS6-N-050K N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head with Cover Cap
N/A DR08-01-AS6-N-050V N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-N-120V N/A Buna-N N/A 25 to 83 bar363 to 1200 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-N-120V065 N/A Buna-N N/A 25 to 83 bar363 to 1200 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-N-220H N/A Buna-N N/A 45 to 152 bar653 to 2200 psi N/A 4 gpm15 L/min N/A Knurled Hand Knob
N/A DR08-01-AS6-N-220K N/A Buna-N N/A 45 to 152 bar653 to 2200 psi N/A 4 gpm15 L/min N/A Allen Head with Cover Cap
N/A DR08-01-AS6-N-220V N/A Buna-N N/A 45 to 152 bar653 to 2200 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-N-300H N/A Buna-N N/A 74 to 210 bar1073 to 3000 psi N/A 4 gpm15 L/min N/A Knurled Hand Knob
N/A DR08-01-AS6-N-300K100 N/A Buna-N N/A 74 to 210 bar1073 to 3000 psi N/A 4 gpm15 L/min N/A Allen Head with Cover Cap
N/A DR08-01-AS6-V-050V N/A Viton® N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-V-120V065 N/A Viton® N/A 25 to 83 bar363 to 1200 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-AS6-V-220H N/A Viton® N/A 45 to 152 bar653 to 2200 psi N/A 4 gpm15 L/min N/A Knurled Hand Knob
N/A DR08-01-C-AS6-V-050V N/A Viton® N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-C-N-050F005 N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Factory Pre-Set / Non-Adjustable
N/A DR08-01-C-N-050F040 N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Factory Pre-Set / Non-Adjustable
N/A DR08-01-C-N-050F050 N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Factory Pre-Set / Non-Adjustable
N/A DR08-01-C-N-050F060 N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Factory Pre-Set / Non-Adjustable
N/A DR08-01-C-N-050H N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Knurled Hand Knob
N/A DR08-01-C-N-050K N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head with Cover Cap
N/A DR08-01-C-N-050V QS N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-C-N-050V005 N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head
N/A DR08-01-C-N-050V017 N/A Buna-N N/A 3.5 to 35 bar50 to 500 psi N/A 4 gpm15 L/min N/A Allen Head
1 - 25 of 118 | Results Per Page | View | Unit of Measure
1 2 3 4 5
