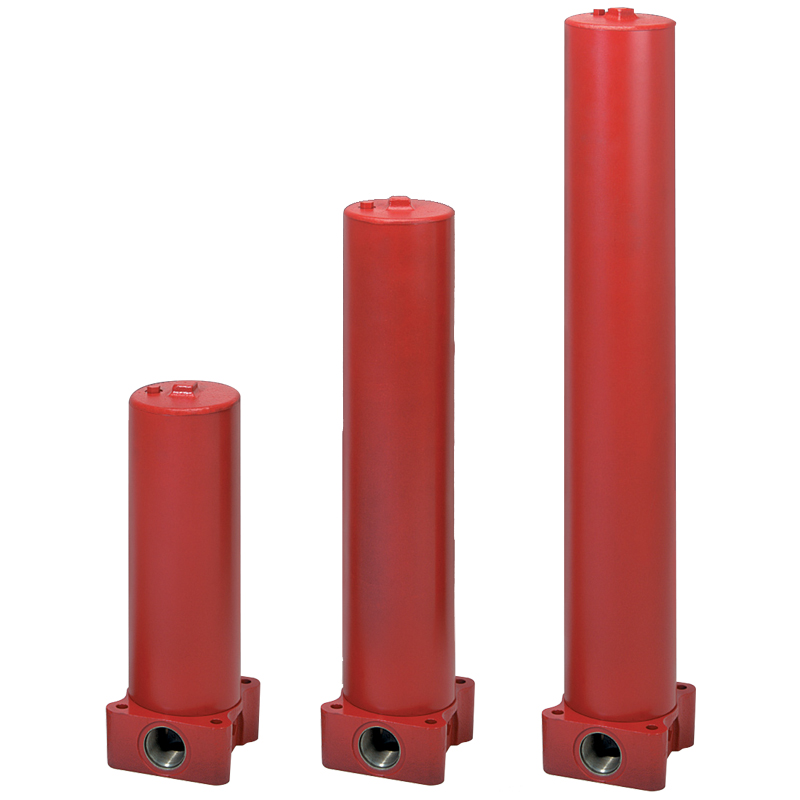

  • HF4P.jpg
1 - 25 of 656 | Results Per Page | View | Unit of Measure
 1 2 3 4 5 »
Request a Quote Compare Items Search by Specification
Clear Filter

Flow (gpm)

  • 123
  • 50
  • 100
  • 120

Flow (L/min)

  • 189
  • 378
  • 454

Filter Rating (µm)

  • 3
  • 5
  • 10
  • 20
  • 25
  • 74
  • 149

Bypass Valve

  • B3
  • B6
  • Non-Bypass

Material

  • Betamicron®
  • Betamicron®/Aquamicron®
  • Consult factory
  • Housing Only
  • Wire Mesh

Seal Material

  • Ethylene Propylene Rubber (EPR)
  • Fluorocarbon Elastomer (FKM)
  • Nitrile Rubber (NBR)

Indication Type

End Type

End Size

End Size (in)

End Size (mm)

Part Number

Model Code Description

Flow

Operating Pressure [Max]

Filter Rating

Bypass Valve

Seal Material

Indication Type

Core Products

N/A HF4P-BH-27F3J1.1/16 N/A 120 gpm454 L/min N/A 345 bar5000 psi N/A 3 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A J = Electric Switch - Brad Harrison 5-Pin Mini Connector
N/A HF4P-BH-09G3D1.1/12B6-L110 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 3 µm N/A B6 N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BN-09G10BM1.1/12 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 10 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A BM = Visual pop-up with manual reset
N/A HF4P-BN-09G3C1.1/12B3 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 3 µm N/A B3 N/A Nitrile Rubber (NBR) N/A C = Electrical Switch
N/A HF4P-BH-09G5C1.1/12 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 5 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A C = Electrical Switch
N/A HF4P-BN-09G10A1.1/12 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 10 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A A = No indicator, plugged port
N/A HF4P-BH-18G3D1.1/12V-L110 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 3 µm N/A Non-Bypass N/A Fluorocarbon Elastomer (FKM) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BH-27P5D1.1/L110 N/A 120 gpm454 L/min N/A 345 bar5000 psi N/A 5 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BN-18F3D1.1/16B6-L24 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 3 µm N/A B6 N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BN-09G10J1.1/12B3 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 10 µm N/A B3 N/A Nitrile Rubber (NBR) N/A J = Electric Switch - Brad Harrison 5-Pin Mini Connector
N/A HF4P-BH-18G10J41.1/12 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 10 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A J4 = Electric switch - Brad Harrison 4-pin micro connector
N/A HF4P-BH-09G3J41.1/12 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 3 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A J4 = Electric switch - Brad Harrison 4-pin micro connector
N/A HF4P-BH-09G10J41.1/12 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 10 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A J4 = Electric switch - Brad Harrison 4-pin micro connector
N/A HF4P-BN-18F3D1.1/16B3-L110 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 3 µm N/A B3 N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BH-09P10D1.1/L110 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 10 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BH-09G3J1.1/12B3 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 3 µm N/A B3 N/A Nitrile Rubber (NBR) N/A J = Electric Switch - Brad Harrison 5-Pin Mini Connector
N/A HF4P-BN-18G10A1.1/12B6 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 10 µm N/A B6 N/A Nitrile Rubber (NBR) N/A A = No indicator, plugged port
N/A HF4P-18PXXA1.1 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A A = No indicator, plugged port
N/A HF4P-BN-18G10J1.1/12B6 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 10 µm N/A B6 N/A Nitrile Rubber (NBR) N/A J = Electric Switch - Brad Harrison 5-Pin Mini Connector
N/A HF4P-BN-27G10A1.1/12B6 N/A 120 gpm454 L/min N/A 345 bar5000 psi N/A 10 µm N/A B6 N/A Nitrile Rubber (NBR) N/A A = No indicator, plugged port
N/A HF4P-BN-18G10C1.1/12B6 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 10 µm N/A B6 N/A Nitrile Rubber (NBR) N/A C = Electrical Switch
N/A HF4P-BN-18G10D1.1/12B6-L110 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 10 µm N/A B6 N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
N/A HF4P-BN-09P3C1.1/B6 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 3 µm N/A B6 N/A Nitrile Rubber (NBR) N/A C = Electrical Switch
N/A HF4P-BN-09P10C1.1/B6 N/A 50 gpm189 L/min N/A 345 bar5000 psi N/A 10 µm N/A B6 N/A Nitrile Rubber (NBR) N/A C = Electrical Switch
N/A HF4P-BH-18P10D1.1/L24 N/A 100 gpm378 L/min N/A 345 bar5000 psi N/A 10 µm N/A Non-Bypass N/A Nitrile Rubber (NBR) N/A D = Electric switch and LED light - SPDT
1 - 25 of 656 | Results Per Page | View | Unit of Measure
 1 2 3 4 5 »
