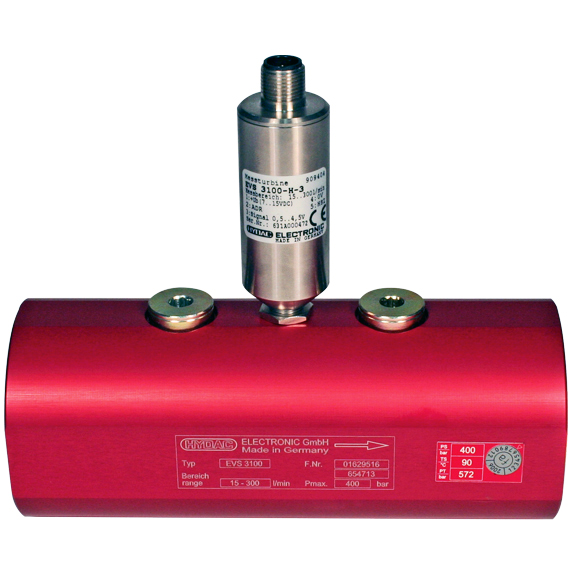

The flow rate transmitters of the EVS 3100 series are specially designed for use in hydraulic and other fluid power systems. They operate in accordance with the turbine principle, which means that the rpm of an impeller wheel rotating in the flow of the media is measured and converted into a 4 .. 20 mA analogue signal.

Two further G1/4 threaded holes in the turbine housing allow additional units to be connected, e.g. temperature and pressure sensors.
1 - 16 of 16 | Results Per Page | View | Unit of Measure
1
Request a Quote Compare Items

Part Number

Model Code Description

Housing Material

Connection Size

Electrical Connection

Measuring Range

Core Products

N/A EVS 3104-A-0060-000 N/A Aluminum N/A G 1/2, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 1.59 to 15.9 gpm
N/A EVS 3104-A-0600-000 N/A Aluminum N/A G1 1/2, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 10.6 to 159 gpm
N/A EVS 3104-A-0300-000 N/A Aluminum N/A G1 1/4, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 3.96 to 79.3 gpm
N/A EVS 3104-A-0020-000 N/A Aluminum N/A G 1/4, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 0.26 to 5.28 gpm
N/A EVS 3114-A-0300-000 N/A Stainless Steel N/A G1 1/4, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 3.96 to 79.3 gpm
N/A EVS 3114-A-0600-000 N/A Stainless Steel N/A G1 1/2, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 10.6 to 159 gpm
N/A EVS 3114-A-0020-000 N/A Stainless Steel N/A G1/4, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 0.26 to 5.28 gpm
N/A EVS 3114-A-0060-000 N/A Stainless Steel N/A G1/2, Female on Both Ends N/A Male 4 Pole Binder Series 714 M18 N/A 1.59 to 15.9 gpm
N/A EVS 3106-A-0060-000 N/A Aluminum N/A G 1/2, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 1.59 to 15.9 gpm
N/A EVS 3106-A-0020-000 N/A Aluminum N/A G 1/4, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 0.26 to 5.28 gpm
N/A EVS 3106-A-0300-000 N/A Aluminum N/A G1 1/4, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 3.96 to 79.3 gpm
N/A EVS 3116-A-0020-000 N/A Stainless Steel N/A G1/4, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 0.26 to 5.28 gpm
N/A EVS 3116-A-0600-000 N/A Stainless Steel N/A G1 1/2, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 10.6 to 159 gpm
N/A EVS 3106-A-0600-000 N/A Aluminum N/A G1 1/2, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 10.6 to 159 gpm
N/A EVS 3116-A-0300-000 N/A Stainless Steel N/A G1 1/4, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 3.96 to 79.3 gpm
N/A EVS 3116-A-0060-000 N/A Stainless Steel N/A G1/2, Female on Both Ends N/A Male M12 x 1, 4 Pole N/A 1.59 to 15.9 gpm
