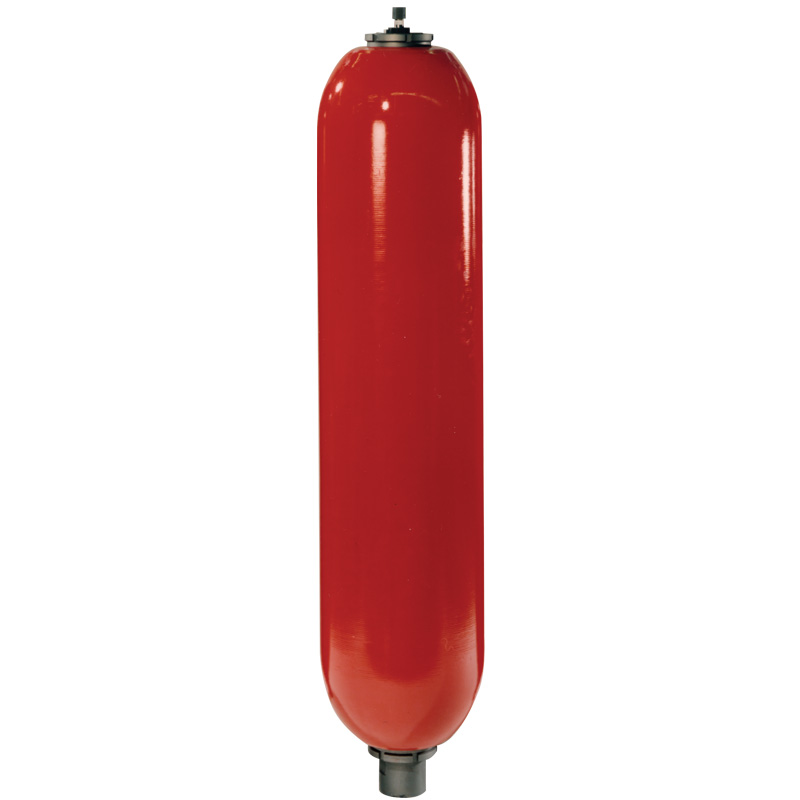

Bladder accumulators are a very versatile and cost effective option for numerous types of hydraulic systems involving energy storage, shock absorption, pulsation dampening, leakage loss compensation and volume compensation. They are a first choice for a great variety of general applications and have the widest range of standard sizes and model options. Bladder accumulators also have very quick shock response characteristics in sizes much larger than diaphragm accumulators. The top repairable accumulator permits service and maintenance of the bladder without removing the accumulator from the hydraulic system.
1 - 11 of 11 | Results Per Page | View | Unit of Measure
1

Part Number

Model Code Description

Connection Size

Volume Capacity

Diameter

Height

Core Products

N/A SB600TR-10F1/112S-345F N/A SAE 1 1/2 in. (Code 62) N/A 2.5 gal10 L N/A 9.7 in247 mm N/A 20.9 in532 mm
N/A SB600TR-20A1/002S-345C N/A 1 7/8 in.-12 UN (SAE-24) N/A 5 gal20 L N/A 9.7 in247 mm N/A 33.5 in851 mm
N/A SB600TR-20A1/112S-345C N/A 1 7/8 in.-12 UN (SAE-24) N/A 5 gal20 L N/A 9.7 in247 mm N/A 33.5 in851 mm
N/A SB600TR-20F1/112S-345F N/A SAE 1 1/2 in. (Code 62) N/A 5 gal20 L N/A 9.7 in247 mm N/A 33.5 in851 mm
N/A SB600TR-20S11/112S-414D(1 1/4 NPT) N/A 1 1/4 in. NPT N/A 5 gal20 L N/A 9.7 in247 mm N/A 33.5 in851 mm
N/A SB600TR-32A1/112S-345C N/A 1 7/8 in.-12 UN (SAE-24) N/A 10 gal32 L N/A 9.7 in247 mm N/A 53.7 in1364 mm
N/A SB600TR-32F1/112S1-345F N/A SAE 1 1/2 in. Code 62 N/A 10 gal32 L N/A 9.7 in247 mm N/A 53.7 in1364 mm
N/A SB600TR-32F1/112S-345F N/A SAE 1 1/2 in. (Code 62) N/A 10 gal32 L N/A 9.7 in247 mm N/A 53.7 in1364 mm
N/A SB600TR-54A1/112S-345C N/A 1 7/8 in.-12 UN (SAE-24) N/A 15 gal54 L N/A 9.7 in247 mm N/A 77.3 in1964 mm
N/A SB600TR-54F1/112S-345F N/A SAE 1 1/2 in. (Code 62) N/A 15 gal54 L N/A 9.7 in247 mm N/A 77.3 in1964 mm
N/A SB600TR-54F11/312S-414H N/A SAE 1 in. (Code 62) N/A 15 gal54 L N/A 9.7 in247 mm N/A 77.3 in1964 mm
